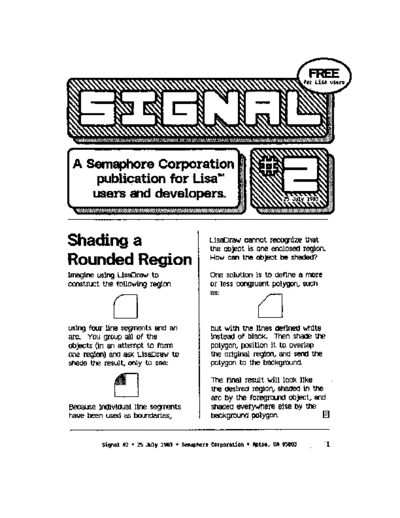

Image preview - the first page of the document



>> Download Signal_02_Jul83 documenatation <<

Text preview - extract from the document

 A Semaphore Corporation
                                               1M
        publication for Usa
       users and developers.


Shading a                                    LlsaDraw cannot recognize that
                                             the object is one enclosed region.
Rounded Region                               How can the object be shaded?

Imagine using LisaOraw to                    One solution is to define a more
construct the fOllowing region               or less congruent polygon, such


             o
                                             as:



using four line segments and an              but with the Unes deflned White
arc. You group all of the                    instead of black. Then shade the
objects (in an attempt to form               polygon, position it to overlap
one region) and ask LlsaDraw to              the original region, and send the
shade the result, only to see:               polygon to the background.
                                             The final result will look like
                                             the desired reglon, shaded In the
                                             arc by the foreground object, and
Because IncJlvl(lUal Une segments            ShaOeCJ everywnere else by the
have been used as boundaries,                background polygon.
