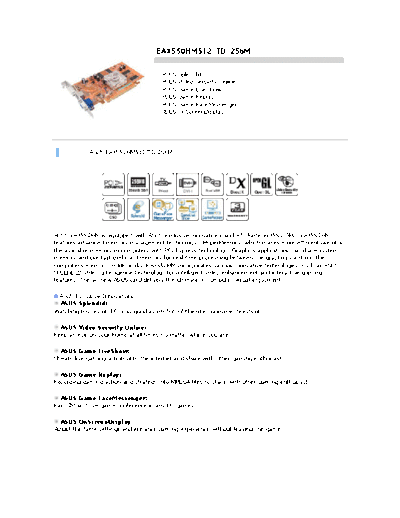

Image preview - the first page of the document
>> Download Asus EAX550HM512TD256M documenatation <<
Text preview - extract from the document
EAX550HM512/TD/256M
- ASUS Splendid
- ASUS Video Security Online
- ASUS Game LiveShow
- ASUS Game Replay
- ASUS Game FaceMessenger
- ASUS OnScreenDisplay
ASUS EAX550HM512/TD/256M
ASUS EAX550HM is equipped with ASUS exclusive innovations and ATI Radeon X550 GPU. EAX550HM
features advanced memory management technology - HyperMemory, which makes more efficient use of all
the available memory in computers with PCI Express technology. Graphics applications can share system
memory and use fast on-board memory for real-time processing between the graphics card and the
computer's memory. Additionally, EAX550HM incorporates various innovative technologies, such as ASUS
SPLENDID Video Intelligence Technology for intelligent video enhancement and interactive gaming
features. The all-new ASUS card delivers the ultimate in computer visual enjoyment.
ASUS Exclusive Innovations
ASUS Splendid:
Watching movies on PC is as good as on Top-of-the-line consumer television
ASUS Video Security Online:
Keep an eye on your home at all times no matter where you are
ASUS Game LiveShow:
Stream live gaming action onto the internet and share with other gaming enthusiast
ASUS Game Replay:
Recording gaming action and strategy into MPEG4 files to share with other gaming enthusiast
ASUS Game FaceMessenger:
Easy IM and live game conference in any PC games
ASUS OnScreenDisplay:
Adjust the fame settings and enhance gaming experience without leaving the game
Graphics VPU Features
Powered by the most powerful GPU- ATI Radeon X550
Four parallel 3D pixel pipelines
Two programmable vertex shader pipelines
PCI Express X16 lane native support
Full DX9 support
SMARTSHADERTM 2.0
SMOOTHVISIONTM2.1
Models Available
EAX550HM512/TD/256M/A
PCI-E 16X, DVI-I, Dual VGA, TV-OUT, 256M
Specification
Graphics Engine ATI Radeon X550
Video Memory 256 MB DDR
Effective Memory Size 512MB
Engine Clock 400MHz
Memory Clock 500MHz (250MHz DDR)
RAMDAC 400MHz
Bus Standard 16 lanes PCI Express
Memory Interface 128 bit DDR
Max Resolution 2048x1536
VGA Output Standard 15-pin D-sub
2nd VGA Output Yes
DVI Output DVI-I
TV Output S-video and Composite
TV out adaptor
Adapter/Cable Bundled
DVI-to 2nd VGA adaptor
Software Bundled ASUS Utilities & Driver
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products
may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.
