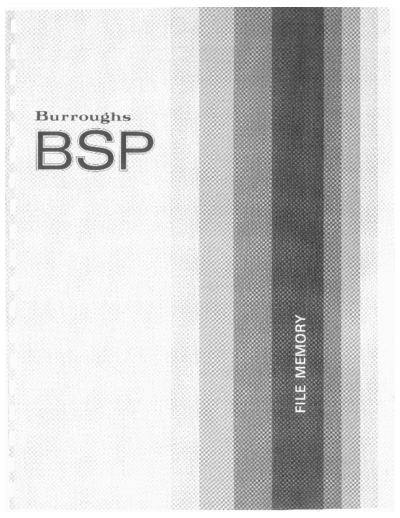

Image preview - the first page of the document
>> Download BSP_File_Memory documenatation <<
Text preview - extract from the document
Burroughs
BSP BURROUGHS SCIENTIFIC PROCESSOR
p
BURROUGHS SCIENTIFIC PROCESSOR
FILE MEMORY
~~p ~~~~~~~~~~~~~~~~~~~~~BURROUGHSSCIENTIFICPROCESSOR
I 1
BSP BURROUGHS SCIENTIFIC PROCESSOR
CONTENTS
Page
ABSTRACT B-v
1. INTRODUCTION B-1
2. DESIGN GOALS B-3
3. TECHNOLOGY B-5
Why Not Disk? B-5
CCD Technology B-6
4. FILE MEMORY DESIGN B-7
File Storage Unit B-7
File Memory Controller B-8
50 PROGRAMMABILITY CONSIDERATIONS B-9
Space Allocation B-9
File Addressability B-11
File Protection B-11
Request Queueing B-11
Problem State 1/0 B-12
Error Recovery B-12
6. SUMMARY B-13
B-iii
~~p ~~~~~~~~~~~~~~~~~~~~BURROUGHSSCIENTIFICPROCESSOR
BSP BURROUGHS SCIENTIFIC PROCESSOR
ABSTRACT
The Burroughs Scientific Processor file memory exploits recently developed
charge-coupled device memory technology to provide file access performance
balanced to the needs of high-speed computation. It can transmit sequential file
records at a sustainable rate of over 10 million words per second and can access
a random record with an average delay of only 660 microseconds l thus exceeding
conventional disk and drum speeds by an order of magnitude. It eliminates
operating system softward overhead for routine record access by offloading these
functions into the controller. As the only input-output device directly connected
to the BSP 1 the file memory provides temporary storage for up to 64 million 48-
bit words of program and data files l and serves as a staging area for files to be
transferred to or from conventional peripherals and permanent storage.
B-v
~~p ~~~~~~~~~~~~~~~~~~~~~BURROUGHSSCIENTIFICPROCESSOR
, ')
BSP BURROUGHS SCIENTIFIC PROCESSOR
1. INTRODUCTION
The speed of scientific computers is limited fundamentally by the rate at which
data can be supplied to the arithmetic units. Although large, fast, random-access
memories are attractive from performance considerations, their cost effective-
ness declines for capacities above a few million words. However, many important
scientific applications process data bases of tens of millions of words. Typically,
the data represent values at points in a tv{o-dimensional or three-dimensional grid,
as in weather prediction and nuclear research, or coefficients of large matrices,
as in structural analysis or linear programming. Algorithms typically access
this data by one or more sequential sweeps across the grid or matrix.
Given these characteristic features of scientific data-base access, a two-level
memory hierarchy, with a few million words of random-access memory backed up
by an order of magnitude of more high-speed sequential access memory, could
provide optimum performance at a reasonable cost. Unfortunately, the speeds of
current generation supercomputers have considerably outstripped the speeds of
sequential memory devices. For example, arithmetic speeds may approach 100
million operations per second (MOPS), but fast disks provide only 500 thousand
operands per second, a compute/transfer ratio of 200: 1. On the other hand,
important algorithms have compute/transfer ratios in the range 20:1 to 5:1; indeed,
the back substitution phase of linear equation solution has a ratio of only 1:1. Such
algorithms would be severely 1/ 0- bound by conventional devices.
A common pseudo-solution to the I/O problem has heen to multiprogram an 1/0-
bound program with another program that is not 1/ a-limited. Although this uses
the computing resources more efficiently, it does nothing to speed up the execution
of the 1/ a-limited program. Thus, the multiprogramming approach is irrelevant
to supercomputers, whose reason for being is to speed up the solution of problems
consuming hours or days on conventional computers.
B-1
~~p ~~~~~~~~~~~~~~~~~~~~-BURROUGHSSCIENTIFICPROCESSOR
n
i '
BSP---------~-------------------------------------- BUR ROUGHS SCI ENTI F IC PROCESSOR
2. DESIGN GOALS
In order to provide balanced 110 performance for a scientific computer, the follow-
ing design goals were established for the ESP file memory.
1. Since 110 delays are incompatible with the goal of maximum
execution speeds for a single program, all ESP program 1/0
will be to a single secondary storage subsystem with balanced
performance characteristics: the file memory. Files coming
from or destined to lower speed peripherals will be independently
spooled to I from file memory before the program starts or after
it completes, concurrently with execution of other BSP programs.
2. The time to transfer one operand in and one operand out of
central memory will not exceed the time for 10 floating-point
opera tions. This is satisfied for a unidirectional transfer rate
in excess of 10 million words per second, given the 50 million
operations-per-second speed of the ESP.
3. File capacities of 8-16 times central memory size will be
available. For a maximum main memory of 8 million words,
this implies a maximum capacity of at least 64 million words.
4. The file system reliability must be consistent with continuous
operations at maximum bandwidth. This implies file storage
unit mean time to failure of at least 200 hours, with provision
for transient error recovery and error logging for preventive
maintenance.
B-3
BSP BURROUGHS SCIENTIFIC PROCESSOR
5. Since system software necessary to issue input-output operations
is scalar code that detracts from the floating-point payload of
a number cruncher, the necessity for such code should be
minimized. This suggests an asynchronous controller to per-
form routine "physical 1/0" operations.
6. Since the use of assembly language contradicts the philosophy of
Burroughs computers, the full efficiency of the 110 system must
be available to the FORTRAN programmer. This suggests some
extensions in BSP FORTRAN to permit unbuffered asynchronous
1/0, as well as a storage and addressing structure compatible
with FORTRAN record formats.
B-4
asp BURROUGHS SCIENTIFIC PROCESSOR
3. TECHNOLOGY
WHY NOT DISK?
Although off-the-shelf disk systems clearly have inadequate performance chara-
cteristics for supercomputers, a high-performance subsystem based on disk
technology was cons idered.
One possible way of achieving the desired transfer rate is to operate many disks
concurrently, as was done on the Burroughs ILLIAC IV. This approach requires
sophisticated techniques for distributing related data among multiple disks and
synchronizing the multiple transfers. These synchronization problems could be
eliminated by connecting several read/write heads to a single disk, but a more
fundamental problem remains.
The effective data-access rate from a disk-type device is ultimately limited by
the mechanical access time, typically 10-40 milliseconds. Since the maximum
size block transferred on any given access is limited by available memory, even
an infinite number of disks or heads operated in parallel produces only a finite
effective transfer rate. For example, even if the transfer rate were infinite, a
disk with 33-millisecond access time would require two buffers of O. 3 million
words each to provide a sequential throughput of 10 million words per second.
Another disadvantage of the multiple disk approach is the reliability requirement
for a high bandwidth system. Current hiRh performance disk technology attains
error rates as low as one error per lOlv to 10 12 bits transferred. But even at
these rates, a 128-head system operating at 5 X 10 8 bits per second would fail
about once per hour, which is intolerable for a system designed to service multi-
hour jobs routinely.
B-5
~~p ~~~~~~~~~~~~~~~~~~~~-BURROUGHSSCIENTIFICPROCESSOR
CCD TECHNOLOGY
A solution to the performance requirements of the ESP secondary storage was
found in an emerging semiconductor memory technology~ specifically charge-
coupled devices (CCD). The advantages of this technology include the following:
1. Availability. Competing technologies such as bubble memories
or electron-beam storage tubes were not available in production
quantities when the design was being settled. On the other hand~
9K -bit chips were in production from several vendors~ with 16K-
bit and 64K-bit versions in active development. Since CCD is
based on well understood MOS semiconductor memory technology~
this presented the least technical risk.
2. Economy. Cost projections indicated that CCD prices would drop
dramatically as chip densities improved. And~ although CCD
would seem to be more expensive than bulk disk storage~ when
the engineering costs for a high-performance~ relatively low-
production-volume supercomputer I/O subsystem are included~
CCD costs become competitive.
3. Easily paralleled. The transfer rate of a semiconductor memory
can be made arbitrarily high just by operating multiple chips in
parallel. Since chip transfer rates of about 5 million bits per
second are available~ it is practical to achieve the target transfer
ra tes from a memory only a few words wide.
4. Low latency. Although high instantaneous transfer rate is easily
achieved from parallelism alone~ a high sustainable transfer rate
requires buffers large enough to mask the access time. Since a
CCD memory is essentially a large shift register~ it shares with
disk memories a rotational-type latency. However~ access times
below 500 microseconds are available with CCD technology. Thus~
only moderate-sized buffers (24K - 64K words) are required to
fully mask latency for double-buffered sequential transfers.
5. Reliability. Very good, chip-level reliability, coupled with easily
implemented Hamming code single-error correction/ double-error
detection provides system reliability much superior to that avail-
able from off-the-shelf disks.
B-6
BSP --- BURROUGHS SCIENTIFIC PROCESSOR
4. FILE MEMORY DESIGN
The file memory subsystem consists of two major sections" as illustrated in
Figure 1. The file storage unit contains the CCD memory chips and addressing
logic" and the file memory controller interfaces the storage system to both the
BSP and the system manager.
FILE STORAGE UNIT
The initial production of the file storage unit (FSU) is being built for Burroughs
by Fairchild Semiconductor" using their F464 65K -bit CCD chip. Each storage
unit provides up to 16 million 56-bit words (48 data bits plus 8 bits for error
correction)" internally organized as 1 to 4 basic storage increments of 4 million
words each.
The basic storage unit (BSU) operates at one of two clock frequencies. For
access and transfer" the chips are operated at 3. 1 megaHertz to provide two
words every 160 nanoseconds with a maximum latency of 1. 3 milliseconds.
Nonaddressed modules are cycled at 1/4th that clock rate to conserve power while
providing refresh necessary to retain data in this volatile storage.
The storage unit is designed to provide arbitrary length block transfers super-
imposed on a paged space allocation scheme. Consequently" the system can begin
a sequential transfer at any address. When the memory address crosses a 16K-
word boundary" the storage unit will continue transferring from the beginning of
any other 16K-word block within the BSU without requiring an additional access
delay.
B-7
~~p ~~~~~~~~~~~~~~~~~~~~~BURROUGHSSCIENTIFICPROCESSOR
FILE MEMORY CONTROLLER
The file memory controller (FMC) provides the programmability features of the
file memory system~ as well as the hardware interfaces. The data paths
supported by the FMC are shown in Figure 1. There is a single half-duplex
path (one direction at a time) between the FSU and the controller, operable at
12. 5M words per second. The interface path to the system manager is buffered
down to its O. 25M words per second maximum effective channel speed. Paths
to the two ESP central memories operate at full FSU speed. Finally, the con-
troller provides a utility block transfer path between BSP parallel memory and
control memory, which can be operated concurrently with FSU to system manager
transfers.
1-4 FILE STORAGE UNITS
~---4----~----+---~
1 4M WORDS INCREMENT
112 BITS/160 NS
BSP
SYSTEM
MANAGER
I/O - FILE MEMORY CONTROLLER 12.5M WORDS/SEC
r PARALLEL
MEMORY
MODULO 0.25M WORDS/SEC
+
I
I
L BSP
CONTROL
MEMORY
I
BSP
CONTROL
UNIT
Figure 1. File Memory Organization
B-8
SSP BURROUGHS SCIENTIFIC PROCESSOR
5. PROGRAMMABILITY CONSIDERATIONS
A major concern in the design of the file memory was to insure that the full 1/0
performance be made available to the FORTRAN programmer l without the
necessity of complex assembly-language code or the overhead of serially-
executed operating system software. As a result, the file memory controller
provides hardware support for file storage space allocation l address translation,
file protection.. request priority queueing; error retry; and completion posting
and synchronization.
SPACE ALLOCATION
Since a typical file is likely to require a relatively large fraction of file memory,
the ESP system avoids the space fragmentation attendant with contiguous allocation
by allocating file space in relatively small (16K word) discontiguous units called
pages. Although this is similar to the multiple-extent allocation common with
conventional disk systems, the BSP file memory offers significant enhancements.
Any paged allocation scheme requires an address translation or lookup to find
the physical address associated with a given record of a given file. This lookup
is typically performed by software on conventional systems l but on the ESP it is
performed by hardware. Each file may be regarded as a book containing multiple
pages. From the program's viewpoint l the pages are numbered consecutively,
but from the file storage viewpoint, they may be physically scattered in a random
way. Corresponding to each book is a table in the FMC local memory which
associates a physical page address with each logical page in the book. This table
is set up by the BSP supervisory software when the file is allocated; the FMC
hardware then performs the logical-to-physical address translation for record
accesses without further software intervention. (See Figure 2. )
B-9
~~p ~~~~~~~~~~~~~~~~~~~~~BURROUGHSSCIENTIFICPROCESSOR
BOOK 6~ BOOK 1 BOOK 0 2"1
WORDS
I (~2,768)
PAGE 0 PAGE 0
LOG ICA L BOOKS PHYSICAL PAGES
A book contains an arbitrary collection of physical pages,
logically renumbered from zero.
/ WORD ADDRESS
/
/
/
/
/
/ I
I I
I
"""'
/
/ / I / """'
/ /
/
1/
I I
",""
/
/
/
/ II
II ",""
/ //
II
1/ """,
""",
L--~==O-
FM
PDM
~
r-12 B ITS--f
Figure 2. File Address Translation
B-10
SSP BURROUGHS SCIENTIFIC PROCESSOR
FILE ADDRESSABILITY
Efficient sequential transfer requires that file memory transfers take place in
fairly large blocks (24K - 64K words). On the other hand J programmer con-
venience diatates that the block size be related to natural problem dimensions J
such as row size of a matrix J rather than to arbitrary hardware convenience.
ConsequentlYJ the BSP file memory provides that the unit of transfer (block) be
completely independent of the unit of allocation (page). In particularJ a block
transfer can begin at any word address and extend for an arbitrary number of
words. The FMC hardware automatically switches to "next page" whenever the
logical block crosses a physical page boundary. This mechanism allows a greatly
simplified I/O request instruction; a program I/O request consists primarily of
a book number (assigned to the file at the time it is allocated)J a starting word
address (relative to the logical beginning of the file)J a block length" and a
memory address.
FILE PROTECTION
A primary motivation for operating system intervention in I/O operations on
conventional systems has been the need for software-implemented file protection.
The BSP file memory" however J is equipped with a hardware file protection
similar to the main memory protection mechanisms on conventional computers.
The system provides that any combination of four access modes can be assigned
on a file (book) basis: system manager read or write" BSP problem program
read or write. If none of thesc arc assigned" only the ESP supervisor (which
runs in privileged mode) can access the files. Since the BSP runs only one pro-
gram at a time" this provides effective isolation between files of the running
program" files for other programs being copied to/from the system manager"
and dormant files belonging to inactive programs.
REQUEST QUEUEING
Another significant source of operating system overhead on conventional machines
is queueing and prioritizing I/O requests. The FMC again provides this function
in hardware. Requests from either the system manager or a BSP program can
be queued in the controller. System manager requests" having a much slower
average transfer rate" receive priority but effectively interleave with ESP re-
quests. BSP requests are normally honored first-in" first-out" but a high-priority
mode is available for urgent requests such as true random access. The queue will
retain up to 32 requests for asynchronous execution.
B-11
~~p ~~~~~~~~~~~~~~~~~~~~~BURROUGHSSCIENTIFICPROCESSOR
PROBLEM STATE I/O
As a result of F Me functional sophistication, the basic BSP 110 instruction can
be executed safely and efficiently in prlblem mode, with no supervisor intervention
whatever for error-free block transfers.
The BSP also provides a hardware synchronization mechanism, fully supported
by the FMC, that also allows the complementary I/O completion posting to be
accomplished without supervisor intervention. The BSP contains a number of
bit registers called synchronizers, which function similarly to the semaphores
introduced by Edsgar Dijkstra. Each I/O request has associated with it two such
synchronizers, one of which is cleared to give the FMC permission to start the
request (indicating that all processing of that buffer by the asynchronous parallel
processor has completed) and another which is cleared by the FMC indicating
that the 110 transfer has successfully completed. This latter synchronizer may
be tested in problem mode when the program needs to reference that buffer. If
it is already cleared, as will normally be the case for sequential buffered I/O, the
program can continue without invoking the supervisor.
ERROR RECOVERY
An extensive component of conventional computing systems' input-output software
is error-recovery procedures. The BSP file memory provides automatic retry
on all errors not corrected by the error-correction code, and independently logs
corrected as well as uncorrectable errors for future maintenance. Since all
meaningful error -recovery procedures will have already been tried, the I/O error r
software needs only to classify the error and inform the running program, which
will take whatever action was directed by the programmer.
B-12
BSP BURROUGHS SCIENTI FIC PROCESSOR
6. SUMMARY
The BSP file memory is so called because it applies the performance and conven-
ience associated with central memories to a file storage device. By this means"
the performance bottleneck previously associated with record access in scientific
programs has been effectively eliminated on the BSP. Thus" the BSP becomes
the first supercomputer on which it is truly practical and efficient to process
scientific programs with data spaces in the tens of millions of words.
B-13
~~p ~~~~~~~~~~~~~~~~~~~~~BURROUGHSSCIENTIFICPROCESSOR
\ I
I !
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
