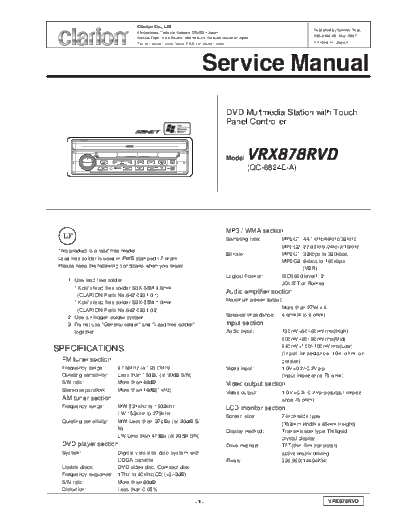

Image preview - the first page of the document
![clarion_vrx878rvd_[ET]](/pics/5c35160548aed.gif)
>> Download clarion_vrx878rvd_[ET] documenatation <<
Text preview - extract from the document
Clarion Co., Ltd.
Published by Service Dept.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
298-6444-00 Mar.2007
Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703 Printed in Japan
Service Manual
DVD Multmedia Station with Touch
Panel Controller
Model
(QC-6824E-A)
MP3 / WMA section
Sampling rate: MPEG1 44.1kHz/48kHz/32kHz
MPEG2 22.05kHz/24kHz/16kHz
This product is a lead free model.
Bit rate: MPEG1 32kbps to 320kbps
Lead free solder is used in PWB stamped LF mark.
MPEG2 8kbps to 160kbps
Please keep the following conditions when you repair.
(VBR)
Logical Format: ISO9660 level1, 2
1. Use lead free solder.
JOLIET or Romeo
* Koki's lead free solder S3X-55M 0.6mm
(CLARION Parts No.642-0231-01)
Audio amplifier section
* Koki's lead free solder S3X-55M 1.0mm Maximum power output:
(CLARION Parts No.642-0231-02) More than 27W x 4
2. Use a nitrogen solder system. Speaker impedance: 4 ohm(4 to 8 ohm)
3. Do not use "General solder" and "Lead free solder" Input section
together. Audio input: 130mV+60/-60mVrms(High)
600mV+80/-80mVrms(Mid)
840mV+100/-100mVrms(Low)
SPECIFICATIONS (input impedance 10k ohm or
FM tuner section greater)
Frequency range: 87.5MHz to 108.0MHz Video input: 1.0V+0.2/-0.2Vp-p
Quieting sensitivity: Less than 15dBu (at 30dB S/N) (input impedance 75 ohm)
S/N ratio: More than 48dB Video output section
Stereo separation: More than 18dB(1kHz) Video output: 1.0V+0.2/-0.2Vp-p(output imped-
AM tuner section ance 75 ohm)
Frequency range: MW 531kHz to 1602kHz LCD monitor section
LW 153kHz to 279kHz Screen size: 7-inch wide type
Quieting sensitivity: MW Less than 37dBu (at 20dB S/ (152mm Width x 85mm Height)
N) Display method: Transmission type TN liquid
LW Less than 47dBu (at 20dB S/N) crystal display
DVD player section Drive method: TFT(thin-film transistor)
System: Digital versatile disc system with active matrix driving
CDDA capable Pixels: 336,960(1440x234)
Usable discs: DVD video disc, Compact disc
Frequency response: 17Hz to 20kHz(CD)(+3/-3dB)
S/N ratio: More than 80dB
Distortion: Less than 0.05%
-1- VRX878RVD
General NOTES
Power source voltage: 14.4V DC
* As for this model, the tuner of the DSP type is used.
(10.8 to 15.6V allowable)
When you exchange it due to the tuner pack(BL1:880-
Ground: Negative
2091D) trouble, it is necessary to adjust for S-meter etc.
Current consumption: 4.0A(1W)
Special JIG is necessary for an accurate adjustment. The
Auto antenna rated current:
procedure document for the exclusive use jig is appended
500mA less
to it.
Dimensions(mm): Main unit
* This DSP IC SAF7730H of main PWB is exposed die
178(W)x50(H)x165(D)
soldering pad type.
Remote control unit
The middle of this IC package is soldered with the main
54(W)x28.8(H)x155(D)
PWB, and it cannot remove in an ordinary soldering iron.
Weight: Main unit 2.4kg
Please use special removal JIG at the time of IC ex-
Remote control unit 100g
change.
(including battery)
* We cannot supply PWB with component parts in prin-
* Specifications and design are subject to change without
ciple. When a circuit on PWB has failure , please repair
notice for further improvement.
it by component parts base. Parts which are not men-
tioned in service manual are not supplied.
COMPONENTS * This DVD player can play the following discs.
DVD video discs, Video CDs, CD text, Audio CDs.
QC-6824E-A
* This DVD video player cannot play back DVD-Audio,
1. Main unit ----------- 1
DVD-RAM, Photo CDs, etc.
2. Universal mounting bracket 300-9677-00 1
* This unit can play back CD-R/CD-RW, DVD-R/RW,
3. Remote control unit RCB-177-300 1
DVD+R/RW discs on which MP3/WMA music data have
4. Batteries(AA.SUM-3) ----------- 2
been recorded.
5. Outer escutcheon 940-8145-20 1
This unit is a ID3 Tag compatible model.
6. DCP case 335-6035-60 1
This unit supports the ID3 Tags of the version 2.4, 2.3,
7. Power supply lead(16P) 854-6432-50 1
1.1 and 1.0.
7-1. Fuse(15A) 120-0150-00 1
After disc loading, the play mode is automatically en-
8. RCA pin cord(20P) 855-5543-50 1
gaged.
9. Parts bag -----------
* This product incorporates copyright protection technol-
9-1. Hook plate 331-0488-20 2
ogy that is protected by method claims of certain U.S.
9-2. Lead clamp 335-0833-07 1
patents and other intellectual property rights owned by
9-3. Rubber cap 345-3653-20 1
Macrovision Corporation and other rights owners.
9-4. Screw(M5 x 10) 716-0726-51 1
Use of this copyright protection tecnology must be au-
10. Parts bag -----------
thorized by Macrovision Corporation, and is intended for
10-1. Electro tap 060-0018-00 1
home and other limited viewing uses only unless other-
10-2. Machine screw(M4 x 3) 714-4003-8H 4
wise authorized by Macrovision Corporation.
10-3. Flat head screw(M5 x 8) 714-5008-4B 4
Reverse engineering or disassembly is prohibited.
10-4. Sems hex. bolt(M5 x 8) 716-0496-51 5
* The DVD video system assigns a region number to DVD
11. Parts bag -----------
video players and DVD discs by sales area.
11-1. Pad screw(M1.7 x 5 Blk) 716-0872-52 1
The DVD video region number is marked on the disc
12. Parts bag -----------
jacket.
12-1. RCA CAP 345-3799-20 12
* This product includes technology owned by Microsoft
Corporation and cannot be used or distributed without a
1 license from MSLGP.
2
3 * and logo are trademarks
4
or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
6 * Manufactured under license from Dolby Laboratories.
5 7 "Dolby", "Pro Logic" and the double-D symbol are trade-
8
marks of Dolby Laboratories.
* "DTS" is a registered trademark of DTS,Inc.and "DTS
9-4 9-2 10-1 Digital Out" is trademarks of DTS,Inc.
9-3 10-3 * is for legal or rightholder-authorized copying only.
Don't steal music.
iPod is a trademark of Apple Computer, Inc., registered
10-2 in the U.S. and other countries.
9-1 10-4
12-1
11-1
VRX878RVD -2-
legal responsibility shall be with the repairing company.
CAUTIONS
4. Caution in removal and making wiring connection to the parts
This appilance contains a laser system and is classified as
for the automobile.
a "CLASS 1 LASER PRODUCT" . In case of any trouble
Disconnect the battery terminal after turning the ignition key
with this player, please contact your nearest "authorized
off. If wrong wiring connections are made with the battery con-
service station" . To prevent direct exposure to the laser
nected, a short circuit and/or fire may occur. If extensive dam-
beam, do not to open the enclosure.
age is caused due to negligence of repair, the legal responsi-
bility shall be with the repairing company.
5. Cautions in soldering
Please do not spread liquid flux in soldering.
Please do not wash the soldering point after soldering.
1043054
6. Cautions in soldering for chip capacitors
Please solder the chip capacitors after pre-heating for replace-
ment because they are very weak to heat.
Please do not heat the chip capacitors with a soldering iron
directly.
7. Cautions in handling for chip parts.
Do not reuse removed chips even when no abnormality is ob-
QC-6824E-A
276-0219-00
served in their appearance. Always replace them with new
QC-6824E-A HUNGARY
ones. (The chip parts include resistors, capacitors, diodes, tran-
sistors, etc).
Please make an operation test after replacement.
8. Cautions in handling flexible PWB
Before working with a soldering iron, make sure that the iron
tip temperature is around 270 . Take care not to apply the
iron tip repeatedly(more than three times)to the same patterns.
Also take care not to apply the tip with force.
9. Turn the unit OFF during disassembly and parts replacement.
Recheck all work before you apply power to the unit.
10. Cautions in checking that the optical pickup lights up.
To engineers in charge of repair or The laser is focused on the disc reflection surface through the
lens of the optical pickup. When checking that the laser opti-
inspection of our products. cal diode lights up, keep your eyes more than 30cms away
from the lens. Prolonged viewing of the laser within 30cms
Before repair or inspection, make sure to follow the
may damage your eyesight.
instructions so that customers and Engineers in charge 11. Cautions in handling the optical pickup
of repair or inspection can avoid suffering any risk or The laser diode of the optical pickup can be damaged by elec-
injury. trostatic charge caused by your clothes and body. Make sure
1. Use specified parts. to avoid electrostatic charges on your clothes or body, or dis-
The system uses parts with special safety features against fire charge static electricity before handling the optical pickup.
and voltage. Use only parts with equivalent characteristics 11-1. Laser diode
when replacing them. The laser diode terminals are shorted for transportation in or-
The use of unspecified parts shall be regarded as remodeling der to prevent electrostatic damage. After replacement, open
for which we shall not be liable. The onus of product liability the shorted circuit. When removing the pickup from the mecha-
(PL) shall not be our responsibility in cases where an accident nism, short the terminals by soldering them to prevent this
or failure is as a result of unspecified parts being used. damage.
2. Place the parts and wiring back in their original positions after 11-2. Actuator
replacement or re-wiring. The actuator has a powerful magnetic circuit. If a magnetic
For proper circuit construction, use of insulation tubes, bond- material is put close to it. Its characteristics will change. En-
ing, gaps to PWB, etc, is involved. The wiring connection and sure that no foreign substances enter through the ventilation
routing to the PWB are specially planned using clamps to keep slots in the cover.
away from heated and high voltage parts. Ensure that they are 11-3. Cleaning the lens
placed back in their original positions after repair or inspec- Dust on the optical lens affects performance.
tion. To clean the lens, apply a small amount of isopropyl alcohol to
If extended damage is caused due to negligence during re- lens paper and wipe the lens gently.
pair, the legal responsibility shall be with the repairing com-
pany.
3. Check for safety after repair.
Check that the screws, parts and wires are put back securely
in their original position after repair. Ensure for safety reasons
there is no possibility of secondary ploblems around the re-
paired spots.
If extended damage is caused due to negligence of repair, the
-3- VRX878RVD
ERROR DISPLAYS
If an error occurs, one of the following displays is displayed. Take the measures described below to solve the problem.
Displa y Cause Measure
ERROR 2 A disc is caught inside the This is a failure of DVD deck's mechanism.
CD deck and is not ejected.
ERROR 3 A disc cannot be played Replace with a non-scratched, non-warped disc.
due to scratches, etc.
ERROR 6 A disc is loaded upside- Eject the disc then reload it properly.
down inside the DVD deck
DVD and does not play.
Player PARENTAL Parental level error Set the correct Parental level.
VIOLATION
WRONG REGION Region code error Eject the disc, and replace correct region code
disc.
DRM WMA files protected by Perform the operation such as skipping a file.
DRM are played. (Scan, repeat and random playback mode may be
canceled.)
NOT SUPPORT Files not supported by this
unit are played.
ERROR 2 A disc inside the CD This is a failure of CD changer's mechanism.
changer is not loaded.
ERROR 3 A disc inside the CD Replace with a non-scratched, non-warped disc.
CD changer cannot be played
Changer due to scratches, etc.
ERROR 6 A disc inside the CD Eject the disc then reload it properly.
changer cannot be played
because it is loaded
upside-down.
If an error display other than the ones described above appears, press the Reset button. If the problem
persists, turn off the power and consult your store of purchase.
* When the Reset button is pressed, frequencies of radio stations, titles, etc. stored in memory are cleared
.
NOTES OF ISO CONNECTOR
1. For VW/Audi/Opel/Vauxhall vehicles, change the posi- 2. When the car stereo is installed in 1998 and later
tion of fuse installation as shown on the diagram. (Figure 1) Volkswagen models, remove the auto antenna leads (A-
5:Blue/White). Be sure to insulate both the ISO connector
side terminal and the main unit side terminal with insulation
Initial setting of Ex-lead tape, respectively. (Figure 2)
Yellow Yellow
Fuse 3. When the main unit is also connected to an external am
plifier, connect REMOTE on the external amplifier to remote
turn-on lead.
Red Red
Blue/White Blue/White
To Main unit
Blue/White Blue/White ISO
CONNECTOR
Auto ant.(A-5)
Remote
Remote turn-on
Insulation tape
Blue/White
For models 1992 and later For models up to 1991
Yellow Remote turn-on Insulate the terminal
* Never let the terminals make contact
Yellow Yellow with the metal plate parts of the car.
Red Red Red
Red Figure 2
Figure 1
VRX878RVD -4-
WIRE CONNECTION
Radio antenna jack
Yellow No. Color Description No. Color Description
Video input terminal of TV tuner/ 1 GRN SP R/L(+) 2 GRN/BLK SP R/L(-)
DVD changer/CCD camera 3 WHT/BLK SP F/L(-) 4 BRN PHONE MUTE
5 WHT SP F/L(+) 6 RED ACC
Purple/White 7 GRY SP F/R(+) 8 - N.C.
Reverse Gear terminal 9 GRY/BLK SP F/R(-) 10 BLU/WHT REMOTE
Steering wheel remote control 11 PUR SP R/R(+) 12 ORG/WHT ILLUMI
input jack 13 PUR/BLK SP R/R(-) 14 GRASS GRN PARKING BRAKE
15 YEL BACK UP 16 BLK GND
RGB terminal (WITH FUSE)
2 4 6 8 10 12 14 16
J601 CeNET 1 3 5 7 9 11 13 15
terminal
Optical output 15
1 3 5 7 9 11 13
connector
YELLOW
GRASS GREEN
2 4 6 8 10 12 14 16
ORG / WHT
BLU / WHT
WHT / BLK
GRN / BLK
PUR / BLK
GRY / BLK
BROWN
PURPLE
120-0150-00
GREEN
BLACK
WHITE
FUSE(15A)
GRAY
RED
15A
iPod
Power supply lead
with video
854-6432-50
ACC
Connector cable
PARKING
PHONE
(CCA-673-600)
MUTE
BRAKE
REMOTE
Connect to the video of
visual input terminal.
BACK UP
P201
2 4 6 8 10 12 14 16 18 20
1 3 5 7 9 11 13 15 17 19
ISO CONNECTOR
No. Description No. Description
1 LEFT REAR 11 2ZONE LEFT No. Description No. Description A
2 RIGHT REAR 12 2ZONE RIGHT A-1 N.C. B-1 SP R/R(+) 8 6 4 2
3 LEFT FRONT 13 V OUT GND A-2 N.C. B-2 SP R/R(-) 7 5 3 1
4 RIGHT FRONT 14 V IN GND
A-3 N.C. B-3 SP F/R(+)
5 S-GND 15 VIDEO OUT
A-4 BACK UP B-4 SP F/R(-) B
6 S-GND 16 VIVEO IN 8 6 4 2
7 NF LEFT 17 V-AUDIO GND L A-5 REMOTE B-5 SP F/L(+)
8 NF RIGHT 18 V-AUDIO GND R A-6 ILLUMI B-6 SP F/L(-) 7 5 3 1
9 S-GND 19 V-AUDIO LEFT A-7 ACC B-7 SP R/L(+)
10 S-GND 20 V-AUDIO RIGHT A-8 GND B-8 SP R/L(-)
Red
Gray
Right
Front audio output 4-Channel Amplifier
left terminal
White
Red
Black Right
Rear audio output
left terminal
White
Red
Purple
Right Non fader
left output terminal
White Rear monitor
Gray Yellow
Video output terminal
Wireless
Green Right
Red (2-ZONE Headphone
output terminal) (WH143H)
Left
White
Yellow
Video VTR etc.
Black White
Audio (left) Visual input
Red terminal
Red Audio (right)
-5- VRX878RVD
BLOCK DIAGRAM
Main unit section
No. Description
No. Description
1 SP R/L(+) Ce-NET
SP OUT 4CH
J601 1 GND
2 SP R/L(-) CONNECTOR Sub PWB(B2)
AUDIO OUT 2 BACK UP
3 SP F/L(-)
BACK GEAR
POWER SUPPLY (13P)
3 L-CH(+)
REMOCON
4 PHONE MUTE
ACC CONNECTOR(16P)
B/U
J604 4 NAVI(+)
FRONT/REAR RCH
5 SP F/L(+) 5V DC/DC
FRONT/REAR LCH
WIRED
LCD POWER SUPPLY
6 ACC 5 NAVI(-)
NON-FADER L/R
CONVERTER DC/DC CONVERTER
7 SP F/R(+) 6 BUS(+)
8 7 R-CH(+) IC576 IC552
2ZONE OUT
AUTO ANT
9 SP F/R(-) MD1424R NJM2368
8 R-CH(-)
ILLUMI 10 REMOTE 9 SYS-ACC
DETECTOR 11 SP R/R(+) 10 BUS(-)
12 ILLUMI
AV5V
11 L-CH(-) SW
13 SP R/R(-)
12 ILLUMI Q575
PARKING/ 14 PARKING BRAKE
REMOTE+B 15
13 N.C.
PHONE BACK UP
DETECTOR PROTECT 16 GND J551 SUB PWB CONNECTOR
BUS
DRIVER MAIN
REM5V
B/U
P201 (20P) HA12187 J602
AV ON
F-SEL
AMP-STB IC605
AMP-MUTE LCD+B
REM5V B/U B/U
7,8
1,3
2,4
OFFSET-DET SW
11,12
Q608
POWER AMP 3.3V
3.3V AV8.5V
TB2906H
REGURATER B/U
TO AUDIO BLOCK AND TUNER
REGURATER REGURATER B/U ACC B/U MEM3.3V
(20P)
IC601 BA033
TO DAL SIGNAL PROSESSOR
Q612
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
