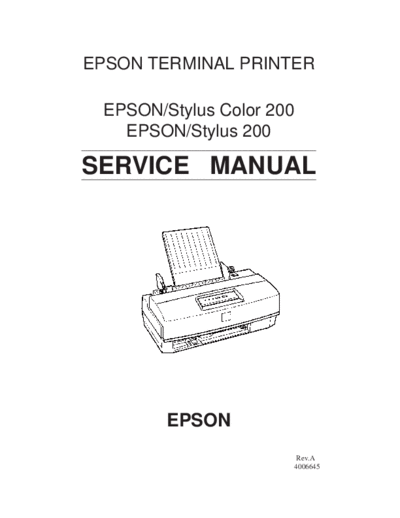

Image preview - the first page of the document
Epson Stylus Color 200 - Stylus 200 Service Manual


>> Download Epson Stylus Color 200 - Stylus 200 Service Manual documenatation <<

Text preview - extract from the document
EPSON TERMINAL PRINTER

 EPSON/Stylus Color 200
   EPSON/Stylus 200

SERVICE MANUAL




        EPSON
                           Rev.A
                          4006645
                                                 NOTICE
All rights reserved. Reproduction of any part of this manual in any form whatsoever without SEIKO
EPSON's express written permission is forbidden.
The contents of this manual are subjects to change without notice.
All efforts have been made to ensure the accuracy of the contents of this manual. However, should any errors
be detected, SEIKO EPSON would greatly appreciate being informed of them.
The above notwithstanding SEIKO EPSON can assume no resoinsibility for any errors in this manual or the
consequence thereof.
Epson and Epson's ESC/P are registered trademark of Seiko Epson Corporation.
General Notice: Other product names used herein are for identication purpose only and may be trademark of
their respective companies.




       + Copyright 1995 by SEIKO EPSON CORPORATION Nagano, Japan


                                                     -i-
                                      PRECAUTIONS

Precautionary notations throughout the text are categorized relative to 1) personal jnjuury and 2) damage to
equipment.


DANGER           Signals a precaution which, if ignored, could result in serious or fatal personal injury.
                 Great caution should be exercised in performing procedures preceded by DANGER
                 Headings.

WARNING          Signals a precaution which, if ignored, could result in damage to equipment.


The precautionary measures itemized below should always be observed when performing repair/
maintenance procedures.



                                                DANGER

1.   ALWAYS DISCONNECT THE PRODUCT FROM THE POWER SOURCE AND PERIPHERAL
     DEVICES PERFORMING ANY MAINTENANCE OR REPAIR PROCEDURE.
2.   NOWORK SHOULD BE PERFORMED ON THE UNIT BY PERSONS UNFAMILIAR WITH
     BASIC SAFETY MEASURES AS DICTATED FOR ALL ELECTRONICS TECHNICIANS IN
     THEIR LINE OF WORK.
3.   WHEN PERFORMING TESTING AS DCTATED WITHIN THIS MANUAL, DO NOT CONNECT
     THE UNIT TO A POWER SOURCE UNTIL INSTRUCTED TO DO SO. WHEN THE POWER
     SUPPLY CABLE MUST BE CONNECTED, USE EXTREME CAUTION IN WORKING ON
     POWER SUPPLY AND OTHER ELECTRONIC COMPONENTS.


                                                WARNING


1.   REPAIRS ON EPSON PRODUCT SHOULD BE PERFORMED ONLY BY AN EPSON CERTIFIED
     REPAIR TECHNICIAN.
2.   MAKE CERTAIN THATTHE SOURCE VOLTAGES IS THE SAME AS THE RATED VOLTAGE,
     LISTED ON THE SERIAL NUMBER/RATING PLATE. IF THE EPSON PRODUCT HAS A
     PRIMARY AC RATING DIFFERENT FROM AVAILABLE POWER SOURCE, DO NOT
     CONNECT IT TO THE POWER SOURCE.
3.   ALWAYS VERIFY THAT THE EPSON PRODUCT HAS BEEN DISCONNECTED FROM THE
     POWER SOURCE BEFORE REMOVING OR REPLACING PRINTED CIRCUIT BOARDS
     AND/OR INDIVIDUAL CHIPS.
4.   IN ORDER TO PROTECT SENSITIVE MICROPROCESSORS AND CIRCUITRY, USE STATIC
     DISCHARGE EQUIPMENT,SUCH AS ANTI-STATIC WRIST STRAPS, WHEN ACCESSING
     INTERNALCOMPONENTS.
5.   REPLACE MALFUNCTIONING COMPONENTS ONLY WITH THOSE COMPONENTS BY THE
     MANUFACTURE; INTRODUCTION OF SECOND-SOURCE ICs OR OTHER NONAPPROVED
     COMPONENTS MAY DAMAGE THE PRODUCT AND VOID ANY APPLICABLE EPSON
     WARRANTY.


                                                      -ii-
                                                PREFACE
This manual describes functions, theory of electrical and mechanical operations, maintenance, and repair of
Epson Stylus Color 200 /Epson Stylus 200.
The instructions and procedures included herein are intended for the experience repair technician, and
attention should be given to the precautions on the preceding page. The chapters are organized as follows:


CHAPTER 1. PRODUCT DESCRIPTION
Provides a general product overview, lists specifications, and illustrates the main components of the printer.


CHAPTER 2. OPERATING PRINCIPLES
Describes the theory of printer operation.


CHAPTER 3. DISASSEMBLY AND ASSEMBLY
Includes the step-by-step guide for product disassembly and assembly


CHAPTER 4. ADJUSTMENTS
Includes a step-by-step guide for adjustment.


CHAPTER 5. TROUBLESHOOTING
Provides Epson-approved techniques for adjustment.


CHAPTER 6. MAINTENANCE
Describes preventive maintenance techniques and lists lubricants and adhesives required to service the
equipment.


APPENDIX
Describes connector pin assignments, circuit diagrams, circuit board component layout and exploded
diagram.




        The contents of this manual are subject to change without notice.




                                                      -iv-
               REVISION SHEET

Revision   Issue Date           Contents

 Rev.-A    July 15,1996         1st issue




                          -v-
     TABLE OF CONTENTS

CHAPTER 1.   PRODUCT DESCRIPTION
CHAPTER 2.   OPERATION PRINCIPLES
CHAPTER 3    DISASSEMBLY AND ASSEMBLY
CHAPTER 4.   ADJUSTMENT
CHAPTER 5.   TROUBLESHOOTING
CHAPTER 6.   MAINTENANCE
APPENDIX




             -vi-
Chapter 1 Product Description

Table of Contents
1.1 OVERVIEW                                                                                                             1-1

1.2 SPECIFICATIONS                                                                                                       1-2
  1.2.1 Printing Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .              1-2
  1.2.2 Paper Handling Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .                    1-4
  1.2.3 Paper Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .             1-4
  1.2.4 Ink Cartridge Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .                 1-6
  1.2.5 Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .              1-7
  1.2.6 Environmental Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .                  1-7
  1.2.7 Reliability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   1-8
  1.2.8 Safety Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .           1-8
  1.2.9 Acoustic Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .         1-8
  1.2.10 Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .               1-8

1.3 INTERFACE SPECIFICATIONS                                                                            1-9
  1.3.1 Parallel Interface Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
  1.3.2 Parallel Interface (Reverse channel). . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

1.4 OPERATIONS                                                                                                        1-12
  1.4.1 Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .       1-12
  1.4.2 Panel Operation and Built-in Function. . . . . . . . . . . . . . . . . . . . . . . . .                        1-12
  1.4.3 Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .        1-14
        1.4.3.1 Default Settings Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .                1-14
        1.4.3.2 Changing the Default Settings . . . . . . . . . . . . . . . . . . . . . . . . .                       1-15
  1.4.4 Error Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .        1-16
  1.4.5 Printer Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .        1-16
        1.4.5.1 Power-On Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .                 1-16
        1.4.5.2 Sofware Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .              1-16
        1.4.5.3 Panel Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .            1-16

1.5 MAIN CONPONENTS                                                                                                   1-17
  1.5.1 Main Control Board(C199 Main Control Board) . . . . . . . . . . . . . . . . .                                 1-17
  1.5.2 Power Supply Board(C160 PSB/PSE Board) . . . . . . . . . . . . . . . . . . . .                                1-18
  1.5.3 C160 I/F Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .        1-18
  1.5.4 Printer Mechanism((M-4C11). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .                   1-19
  1.5.5 Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .   1-19




Rev. A                                                                                                                1-i
                                            List of Figures
   Figure 1-1. Exterior View of EPSON Stylus Color 200 . . . . . . . . . . . . . . . . . . 1-1
   Figure 1-2. Nozzle Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
   Figure 1-3. Printable Area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
   Figure 1-4. Paper Select Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
   Figure 1-5. Temperature / Humidity of Range . . . . . . . . . . . . . . . . . . . . . . . . 1-7
   Figure 1-6. Data Transmission Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
   Figure 1-7. Control Panel Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
   Figure 1-8. C199 Main Control Board Component Layout . . . . . . . . . . . . . 1-17
   Figure 1-9. C160 PSB/PSE Board Component Layout . . . . . . . . . . . . . . . . 1-18
   Figure 1-10. C160 I/F Board Component Layout . . . . . . . . . . . . . . . . . . . . . 1-18
   Figure 1-11. M-4C11 Printer Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
   Figure 1-12. Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19


                                             List of Tables
   Table 1-1. Print Speed and Printable Columns . . . . . . . . . . . . . . . . . . . . . . . 1-2
   Table 1-2. Character Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
   Table 1-3. Paper Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
   Table 1-4. Adjust Lever Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
   Table 1-5. Paper Select Lever Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
   Table 1-6. Black I/C Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
   Table 1-7. Color I/C Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
   Table 1-8. Rated Electrical Ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
   Table 1-9. Acceptable Environmental Conditions. . . . . . . . . . . . . . . . . . . . . 1-7
   Table 1-10. Siganal and Connector Pin Assignment for Parallel I/F . . . . . 1-10
   Table 1-11. Pin Assignment for Reverse channel . . . . . . . . . . . . . . . . . . . . 1-11
   Table 1-12. Panel Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
   Table 1-13. Built-in Functions on the Panel. . . . . . . . . . . . . . . . . . . . . . . . . 1-13
   Table 1-14. Button Operatins in Default Setting Mode . . . . . . . . . . . . . . . . 1-13
   Table 1-15. Error Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
   Table 1-16. Default Setting Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
   Table 1-17. Default Setting Items(Con.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
   Table 1-18. Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15




1-ii                                                                                                     Rev. A
Epson Stylus Color 200 /Epson Stylus 200                                             Product Description

1.1 FEATURES
The Epson Stylus Color 200/Epson Stylus 200 printer are color ink jet dot matrix printers that come with a
64-nozzle black printhead and a 60-nozzle CMY color printhead, either of which can be installed in the
printer. The Epson Stylus 200 version comes standard with only the 64-nozzle black printhead; however, the
CMY color printhead can be purchased as an optional upgrade. Whenever this manual mentions the Epson
Stylus Color 200, its descriptions are equally applicable to the Epson Stylus 200. The major printer features
are:
t   High-quality color print
         -720 dpi printing
         -720 dpi printing on plain paper
         -720, 360 dpi printing on special coated paper
         (Use the monochrome head only with plain paper)
t   High-speed print(10CPI)
         Monochrome head: 125cps (LQ)
                            167cps(HS)
         CMY head:          200cps(LQ/one-pass printing)
Note:     The CMY head prints 360 dpi printing in three passes.
t   Built-in auto sheet feeder
          -Cut sheets
          -Transparency films (A4 and letter)
          -Envelopes (10 sheets)
          -Plain papers (100 sheets,64g/m2)
t   Built-in I/F
          -Parallel I/F only (8-bit parallel: IEEE P1284 mode)
t   Easy setup
         -No DIP switches
t   3 scalable fonts and 3 LQ fonts standard
          -Roman T, Sans Serif H, Roman, Sans Serif (scalable)
          -Roman, Sans Serif, Courier, ( bitmapLQ)
t   Character tables
         -9 character tables (standard version)
         -15 character tables (NLSP version)
t   Low running cost
The figure below shows the EPSON Stylus Color 200.




               Figure 1-1. Exterior Viewing of EPSON Stylus Color 200




Rev. A                                                                                                   1-1
Product Description                                                   Epson Stylus Color 200 /Epson Stylus 200

1.2 SPECIFICATIONS
This section provides statistics and other detailed information for the printer.


1.2.1 Printing Specifications
Print system:                              On-demand ink jet system
Nozzle configuration:                      64 nozzles (10
