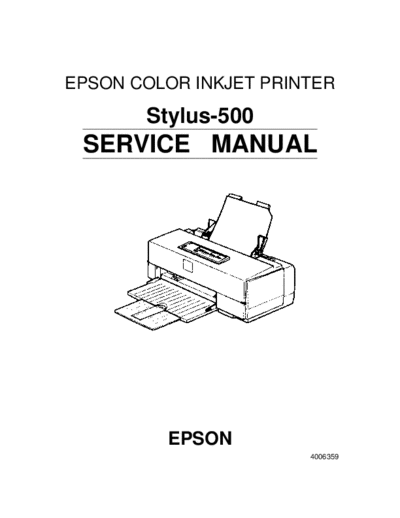

Image preview - the first page of the document
>> Download Stylus 500 documenatation <<
Text preview - extract from the document
EPSON COLOR INKJET PRINTER
Stylus-500
SERVICE MANUAL
EPSON
4006359
PREFACE
This document provides supplementary information to describe the EPSON Stylus COLOR 500, which is a
follow-on version of the EPSON Stylus COLOR II. Therefore, you must refer to this information in conjunction
with the EPSON Stylus COLOR II Service Manual for details on any subjects common to both printers.
-i-
EPSON Stylus COLOR 500 Service Manual Product Description
1.1 FEATURES
The EPSON Stylus COLOR 500 is a small-footprint, personal-use color ink jet printer. The major new
features of this printer are:
t Newly developed black and color inks
High-quality black printing
Deep color printing
t Simple control panel operation
3 No lock switches
4 LED lamps
t A new design for the left guide edge locking mechanism in the ASF (auto sheet feeder)
Table 1-1. Consumables
Model Description
S020093 Monochrome ink cartridge
S020097 Color ink cartridge
S041059 EPSON premium paper for 360 dpi printing (A4)
S041025 EPSON premium paper for 360 dpi printing (A4)
S041060 EPSON premium paper for 360 dpi printing (Letter)
S041061 EPSON premium paper for 720 dpi printing (A4)
S041026 EPSON premium paper for 720 dpi printing (A4)
S041062 EPSON premium paper for 360 dpi printing (Letter)
S041067 EPSON premium paper for 360 dpi printing (Legal)
S041048 EPSON premium paper for 360 dpi printing (Legal)
S041071 High-quality glossy paper (A4)
S041072 High-quality glossy paper (Letter)
S041063 Transparency film (A4)
S041064 Transparency film (Letter)
S041054 EPSON premium card stock for 720 dpi printing (A6)
Rev.A 1-1
Product Description EPSON Stylus COLOR 500 Service Manual
1.2 SPECIFICATIONS
This section provides detailed information about the EPSON Stylus COLOR 500.
1.2.1 Printing Specification
Table 1-2. Character Tables and Typefaces
Bitmap fonts Scalable fonts
EPSON
Roman
EPSON
Character Tables Sans Serif EPSON EPSON
EPSON Roman Roman T
Courier EPSON EPSON
EPSON Sans Serif Sans Serif H
Prestige
EPSON
Script
Italic
PC437 (U.S., Standard Europe)
PC850 (Multilingual)
PC860 (Portuguese)
Standard
PC861 (Icelandic) Supported Supported Supported
version
PC863 (Canadian-French)
PC865 (Nordic)
BRASCII
Abicomp
Italic
PC437 (U.S., Standard Europe) Supported
PC850 (Multilingual)
PC437 Greek
PC852 (East Europe)
PC853 (Turkish)
NLSP PC855 (Cyrillic)
Supported Supported
version PC857 (Turkish)
PC866 (Russian) Not
PC869 (Greek) supported
MAZOWIA (Poland)
Code MJK (CSFR)
ISO 8859-7(Latin/Greek)
ISO Latin 1T (Turkish)
Bulgaria (Bulgaria)
1.2.2 Electric Specification
Power consumption 120v Approx.18W (ISO10561 Letter pattern)
220-240V Approx. 18W (ISO10561 Letter pattern)
Energy Star compliant
1-2 Rev.B
EPSON Stylus COLOR 500 Service Manual Product Description
1.3 INTERFACES
1.3.1 Hardware Interfaces
This section fully describes the EPSON Stylus COLOR 500 interfaces. The printer offers both a parallel and
serial interface, standard.
1.3.1.1 Parallel Interface
Forward Channel
Transmission mode: 8 bit parallel, IEEE-1284 compatibility mode
Synchronization: STROBE pulse
Handshaking: BUSY and ACKNLG signal
Signal level: TTL compatible level (IEEE-1284 level 1 device)
Connector type: 57-30360 (Amphenol or equivalent)
The BUSY signal is set to HIGH before either ERROR is set LOW or PE is set HIGH, and BUSY is held
HIGH until all these signals return to the inactive state. The BUSY signal goes HIGH in the following cases:
