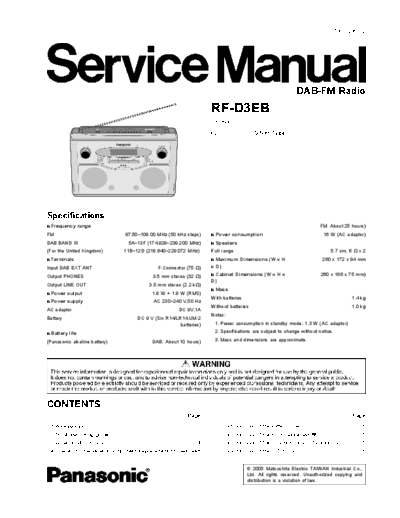

Image preview - the first page of the document
>> Download TD0512057C2_A_RF-D3EB documenatation <<Text preview - extract from the document TD0512057C2
DAB-FM Radio
RF-D3EB
Colour
(S)................... Silver Type
Specifications
n Frequency range FM: About 25 hours)
FM 87.50~108.00 MHz (50 kHz steps) n Power consumption 16 W (AC adaptor)
DAB BAND III 5A~13F (174.928~239.200 MHz) n Speakers
(For the United Kingdom) 11B~12D (218.640~229.072 MHz) Full range 5.7 cm, 6 x 2
n Terminals n Maximum Dimensions (W x H 260 x 172 x 84 mm
Input DAB EXT ANT F-Connector (75 ) x D)
Output PHONES 3.5 mm stereo (32 ) n Cabinet Dimensions (W x H x 260 x 166 x 75 mm)
D)
Output LINE OUT 3.5 mm stereo (2.2 k)
n Mass
n Power output 1.8 W + 1.8 W (RMS)
With batteries 1.4 kg
n Power supply AC 230~240 V,50 Hz
Without batteries 1.0 kg
AC adaptor DC 9V,1A
Notes:
Battery DC 9 V (Six R14/LR14,UM-2
batteries) 1. Power consumption in standby mode: 1.3 W (AC adaptor)
n Battery life 2. Specifications are subject to change without notice.
(Panasonic alkaline battery) DAB: About 10 hours) 3. Mass and dimensions are approximate.
CONTENTS
Page Page
1 Accessories 2 4.1. Removal of the Battery Cover 5
2 Troubleshooting guide 2 4.2. Removal of the Front Cabinet ass 5
3 Location of Controls 4 4.3. Removal of the Volume knob and Tuning knob 5
4 Operation Checks and Component Replacement Procedures 5 4.4. Removal of the LCD P.C.B. 6
