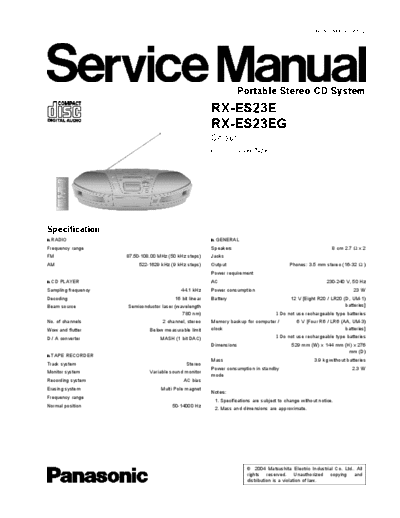

Image preview - the first page of the document
>> Download MD0411555C2_A_RX-ES23E documenatation <<
Text preview - extract from the document
Order No. MD0411555C2
Portable Stereo CD System
RX-ES23E
RX-ES23EG
Colour
(S)..........Silver Type
Specification
n RADIO n GENERAL
Frequency range Speakers 8 cm 2.7 x 2
FM 87.50-108.00 MHz (50 kHz steps) Jacks
AM 522-1629 kHz (9 kHz steps) Output Phones: 3.5 mm stereo (16-32 )
Power requirement
n CD PLAYER AC 230-240 V, 50 Hz
Sampling frequency 44.1 kHz Power consumption 23 W
Decoding 16 bit linear Battery 12 V [Eight R20 / LR20 (D, UM-1)
Beam source Semiconductor laser (wavelength batteries]
780 nm) l Do not use rechargeable type batteries
No. of channels 2 channel, stereo Memory backup for computer / 6 V [Four R6 / LR6 (AA, UM-3)
Wow and flutter Below measurable limit clock batteries]
D / A converter MASH (1 bit DAC) l Do not use rechargeable type batteries
Dimensions 529 mm (W) x 144 mm (H) x 276
mm (D)
n TAPE RECORDER
Mass 3.9 kg without batteries
Track system Stereo
Power consumption in standby 2.3 W
Monitor system Variable sound monitor
mode
Recording system AC bias
Erasing system Multi Pole magnet
Notes:
Frequency range
1. Specifications are subject to change without notice.
Normal position 50-14000 Hz
2. Mass and dimensions are approximate.
