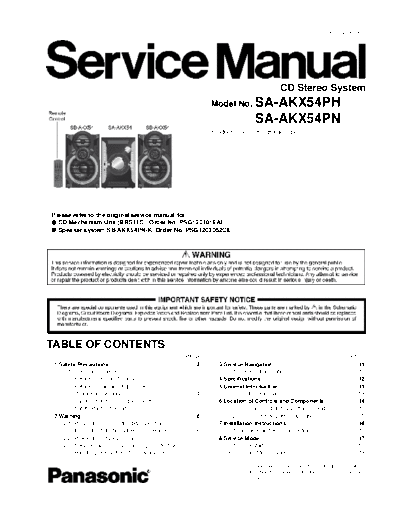

Image preview - the first page of the document
>> Download SA-AKX54+PSG1203049CE documenatation <<
Text preview - extract from the document
PSG1203049CE
CD Stereo System
Model No. SA-AKX54PH
SA-AKX54PN
Product Color: (K)...Black Type
Please refer to the original service manual for:
CD Mechanism Unit (BRS11C), Order No. PSG1201019AE
Speaker system SB-AKX54PN-K, Order No. PSG1203052CE
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 3 Service Navigation --------------------------------------------- 11
1.1. General Guidelines---------------------------------------- 3 3.1. Service Information -------------------------------------- 11
1.2. Before Use (For PH only)-------------------------------- 3 4 Specifications ---------------------------------------------------- 12
1.3. Before Repair and Adjustment ------------------------- 3 5 General/Introduction------------------------------------------- 13
1.4. Protection Circuitry ---------------------------------------- 4 5.1. Media Information---------------------------------------- 13
1.5. Caution For Fuse Replacement------------------------ 4 6 Location of Controls and Components------------------ 14
1.6. Safety Parts Information --------------------------------- 5 6.1. Remote Control Key Button Operation ------------- 14
2 Warning -------------------------------------------------------------- 6 6.2. Main Unit Key Button Operation---------------------- 15
2.1. Prevention of Electrostatic Discharge (ESD) 7 Installation Instructions -------------------------------------- 16
to Electrostatic Sensitive (ES) Devices -------------- 6 7.1. Speaker and A/C Connection ------------------------- 16
2.2. Precaution of Laser Diode------------------------------- 7 8 Service Mode ----------------------------------------------------- 17
2.3. Service caution based on Legal restrictions -------- 8 8.1. Cold-Start -------------------------------------------------- 17
2.4. Handling Precautions for Traverse Unit-------------- 9 8.2. Doctor Mode Table--------------------------------------- 18
