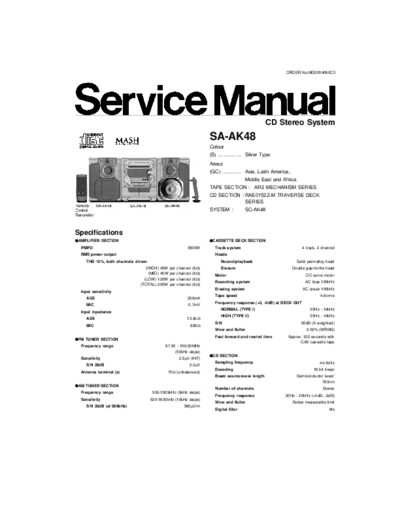

Image preview - the first page of the document
>> Download hfe_panasonic_sa-ak48_service documenatation <<Text preview - extract from the document ORDER No.MD0004060C3
CD Stereo System
SA-AK48
Colour
(S) ................. Silver Type
Areas
(GC) .............. Asia, Latin America,
Middle East and Africa.
TAPE SECTION : AR2 MECHANISM SERIES
CD SECTION : RAE0152Z-M TRAVERSE DECK
SERIES
SYSTEM : SC-AK48
Specifications
qAMPLIFIER SECTION qCASSETTE DECK SECTION
PMPO 3000W Track system 4 track, 2 channel
RMS power output Heads
THD 10%, both channels driven Record/playback Soild permalloy head
(HIGH) 40W per channel (6) Erasure Double gap ferrite head
(MID) 40W per channel (6) Motor DC servo motor
(LOW) 120W per channel (6)
Recording system AC bias 100kHz
(TOTAL) 200W per channel (6)
Erasing system AC erase 100kHz
Input sensitivity
Tape speed 4.8cm/s
AUX 250mA
Frequency response (+3, -6dB) at DECK OUT
MIC 0.7mV
NORMAL (TYPE I) 35Hz - 14kHz
Input inpedance
HIGH (TYPE II) 35Hz - 14kHz
AUX 13.9k
S/N 50dB (A weighted)
MIC 680
Wow and flutter 0.18% (WRMS)
Fast forward and rewind time Approx. 120 seconds with
qFM TUNER SECTION
C-60 cassette tape
Frequency range 87.50 - 108.00MHz
(50kHz steps)
qCD SECTION
Sensitivity 2.5
