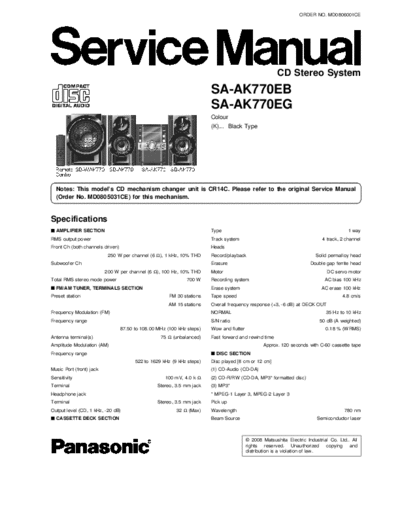

Image preview - the first page of the document
MD0806001CE_PRINTDB


>> Download MD0806001CE_PRINTDB documenatation <<

Text preview - extract from the document
                                                                                                                  ORDER NO. MD0806001CE




                                                                                                        CD Stereo System
                                                                        SA-AK770EB
                                                                        SA-AK770EG
                                                                        Colour
                                                                        (K)... Black Type




  Notes: This model's CD mechanism changer unit is CR14C. Please refer to the original Service Manual
  (Order No. MD0805031CE) for this mechanism.


Specifications
s AMPLIFIER SECTION                                                     Type                                                            1 way
RMS output power                                                        Track system                                        4 track, 2 channel
Front Ch (both channels driven)                                         Heads
                           250 W per channel (6 ), 1 kHz, 10% THD       Record/playback                                  Solid permalloy head
Subwoofer Ch                                                            Erasure                                        Double gap ferrite head
                          200 W per channel (6 ), 100 Hz, 10% THD       Motor                                                  DC servo motor
Total RMS stereo mode power                                   700 W     Recording system                                     AC bias 100 kHz
s FM/AM TUNER, TERMINALS SECTION                                        Erase system                                        AC erase 100 kHz
Preset station                                         FM 30 stations   Tape speed                                                    4.8 cm/s
                                                       AM 15 stations   Overall frequency response (+3, -6 dB) at DECK OUT
Frequency Modulation (FM)                                               NORMAL                                                35 Hz to 10 kHz
Frequency range                                                         S/N ratio                                          50 dB (A weighted)
                                  87.50 to 108.00 MHz (100 kHz steps)   Wow and flutter                                       0.18 % (WRMS)
Antenna terminal(s)                                75  (unbalanced)     Fast forward and rewind time
Amplitude Modulation (AM)                                                                        Approx. 120 seconds with C-60 cassette tape
Frequency range                                                         s DISC SECTION
                                        522 to 1629 kHz (9 kHz steps)   Disc played [8 cm or 12 cm]
Music Port (front) jack                                                 (1) CD-Audio (CD-DA)
Sensitivity                                          100 mV, 4.0 k      (2) CD-R/RW (CD-DA, MP3* formatted disc)
Terminal                                          Stereo, 3.5 mm jack   (3) MP3*
Headphone jack                                                          * MPEG-1 Layer 3, MPEG-2 Layer 3
Terminal                                          Stereo, 3.5 mm jack   Pick up
Output level (CD, 1 kHz, -20 dB)                          32  (Max)     Wavelength                                                     780 nm
s CASSETTE DECK SECTION                                                 Beam Source                                       Semiconductor laser
