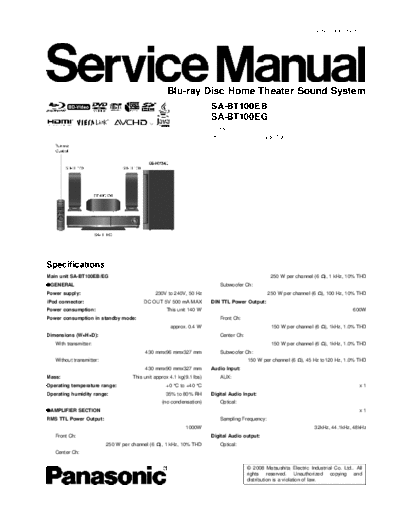

Image preview - the first page of the document

>> Download MD0805005CE_PRINTDB documenatation <<

Text preview - extract from the document
                                                                                                                ORDER NO. MD0805005CE

                                                   Blu-ray Disc Home Theater Sound System
                                                                       (K).......................Black Type

Main unit SA-BT100EB/EG                                                                           250 W per channel (6 ), 1 kHz, 10% THD
 GENERAL                                                                   Subwoofer Ch:
Power supply:                                 230V to 240V, 50 Hz                                250 W per channel (6 ), 100 Hz, 10% THD
iPod connector:                          DC OUT 5V 500 mA MAX          DIN TTL Power Output:
Power consumption:                                 This unit 140 W                                                                     600W
Power consumption in standby mode:                                         Front Ch:
                                                     approx. 0.4 W                                150 W per channel (6 ), 1kHz, 1.0% THD
Dimensions (W
