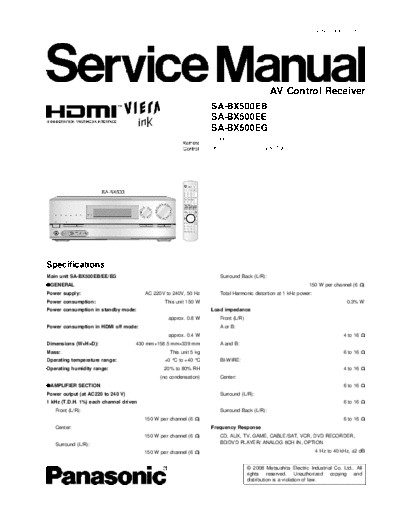

Image preview - the first page of the document
>> Download MD0807009CE_PRINTDB documenatation <<Text preview - extract from the document ORDER NO. MD0807009CE
AV Control Receiver
SA-BX500EB
SA-BX500EE
SA-BX500EG
Colour
(K).......................Black Type
Specifications
Main unit SA-BX500EB/EE/EG Surround Back (L/R):
GENERAL 150 W per channel (6 )
Power supply: AC 220V to 240V, 50 Hz Total Harmonic distortion at 1 kHz power:
Power consumption: This unit 150 W 0.3% W
Power consumption in standby mode: Load impedance
approx. 0.8 W Front (L/R)
Power consumption in HDMI off mode: A or B:
approx. 0.4 W 4 to 16
