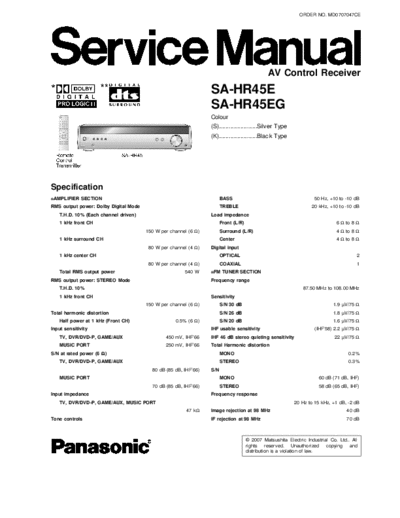

Image preview - the first page of the document
>> Download MD0707047CE_PRINTDB documenatation <<
Text preview - extract from the document
ORDER NO. MD0707047CE
AV Control Receiver
SA-HR45E
SA-HR45EG
Colour
(S).......................Silver Type
(K).......................Black Type
Specification
nAMPLIFIER SECTION BASS 50 Hz, +10 to -10 dB
RMS output power: Dolby Digital Mode TREBLE 20 kHz, +10 to -10 dB
T.H.D. 10% (Each channel driven) Load impedance
1 kHz front CH Front (L/R) 6 to 8
150 W per channel (6 ) Surround (L/R) 4 to 8
1 kHz surround CH Center 4 to 8
80 W per channel (4 ) Digital input
1 kHz center CH OPTICAL 2
80 W per channel (4 ) COAXIAL 1
Total RMS output power 540 W nFM TUNER SECTION
RMS output power: STEREO Mode Frequency range
T.H.D. 10% 87.50 MHz to 108.00 MHz
1 kHz front CH Sensitivity
150 W per channel (6 ) S/N 30 dB 1.9 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
