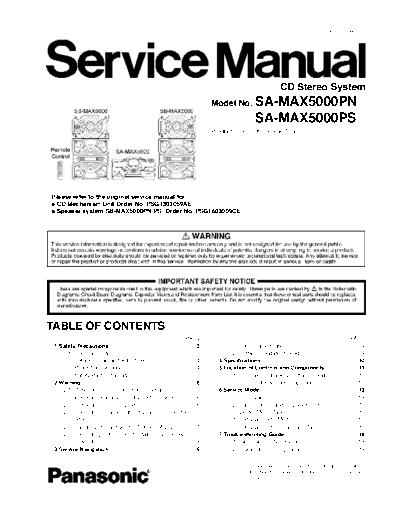

Image preview - the first page of the document
Panasonic+SA-MAX5000PN_MAX5000PS


>> Download Panasonic+SA-MAX5000PN_MAX5000PS documenatation <<

Text preview - extract from the document
                                                                                                                                        PSG1603007CE




                                                                                                                CD Stereo System
                                                                              Model No. SA-MAX5000PN
                                                                                                   SA-MAX5000PS
                                                                              Product Color: (K)...Black Type




Please refer to the original service manual for:
 CD Mechanism Unit Order No. PSG1303059AE
 Speaker system SB-MAX5000PN/PS, Order No. PSG1603009CE




TABLE OF CONTENTS
                                                                    PAGE                                                                            PAGE
 1 Safety Precautions----------------------------------------------- 3                3.1. Service Information ----------------------------------------9
    1.1. General Guidelines---------------------------------------- 3                 3.2. Software Update Procedure-----------------------------9
    1.2. Before Repair and Adjustment ------------------------- 4               4   Specifications ---------------------------------------------------- 10
    1.3. Protection Circuitry ---------------------------------------- 4        5   Location of Controls and Components------------------ 11
    1.4. Safety Parts Information -------------------------------- 5                  5.1. Remote Control Key Button Operation ------------- 11
 2 Warning -------------------------------------------------------------- 6           5.2. Main Unit Key Button Operation---------------------- 12
    2.1. Prevention of Electrostatic Discharge (ESD)                            6   Service Mode ----------------------------------------------------- 13
         to Electrostatically Sensitive (ES) Devices---------- 6                      6.1. Cold-Start -------------------------------------------------- 13
    2.2. Precaution of Laser Diode------------------------------- 6                   6.2. Sales Demonstration Lock Function ---------------- 13
    2.3. General description about Lead Free Solder                                   6.3. Doctor Mode Table--------------------------------------- 14
         (PbF)---------------------------------------------------------- 7            6.4. Self-Diagnostic Mode ----------------------------------- 16
    2.4. Handling Precautions for Traverse Ass'y------------ 7                        6.5. Self-Diagnostic Error Code Table -------------------- 16
    2.5. Grounding for electrostatic breakdown                                  7   Troubleshooting Guide --------------------------------------- 18
         prevention --------------------------------------------------- 8             7.1. No Power or No Display ------------------------------- 18
 3 Service Navigation ----------------------------------------------- 9               7.2. Bluetooth
