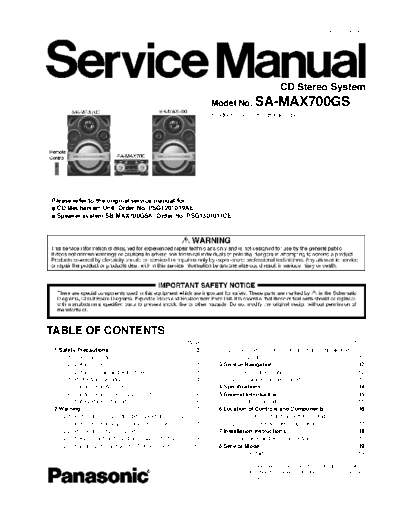

Image preview - the first page of the document
panasonic_sa-max700gs


>> Download panasonic_sa-max700gs documenatation <<

Text preview - extract from the document
                                                                                                                                        PSG1303039CE




                                                                                                                CD Stereo System
                                                                              Model No. SA-MAX700GS
                                                                              Product Color: (K)...Black Type




Please refer to the original service manual for:
  CD Mechanism Unit, Order No. PSG1201019AE
  Speaker system SB-MAX700GSK, Order No. PSG1301011CE




TABLE OF CONTENTS
                                                                    PAGE                                                                            PAGE
 1 Safety Precautions----------------------------------------------- 3                2.5. Grounding for electrostatic breakdown
    1.1. General Guidelines---------------------------------------- 3                      prevention-------------------------------------------------- 11
    1.2. Before Use -------------------------------------------------- 4        3   Service Navigation --------------------------------------------- 12
    1.3. Before Repair and Adjustment ------------------------- 4                     3.1. Service Information -------------------------------------- 12
    1.4. Protection Circuitry ---------------------------------------- 4              3.2. Firmware Update Procedure -------------------------- 13
    1.5. Caution For AC Cord ------------------------------------- 5            4   Specifications ---------------------------------------------------- 14
    1.6. Caution For Fuse Replacement------------------------ 6                 5   General/Introduction------------------------------------------- 15
    1.7. Safety Parts Information -------------------------------- 6                  5.1. Media Information---------------------------------------- 15
 2 Warning -------------------------------------------------------------- 7     6   Location of Controls and Components------------------ 16
    2.1. Prevention of Electrostatic Discharge (ESD)                                  6.1. Remote Control Key Button Operation ------------- 16
         to Electrostatically Sensitive (ES) Devices---------- 7                      6.2. Main Unit Key Button Operation---------------------- 17
    2.2. Precaution of Laser Diode------------------------------- 8             7   Installation Instructions -------------------------------------- 18
    2.3. Service caution based on Legal restrictions -------- 9                       7.1. Speaker and A/C Connection ------------------------- 18
    2.4. Handling Precautions for Traverse Unit-------------10                  8   Service Mode ----------------------------------------------------- 19
                                                                                      8.1. Cold-Start -------------------------------------------------- 19
