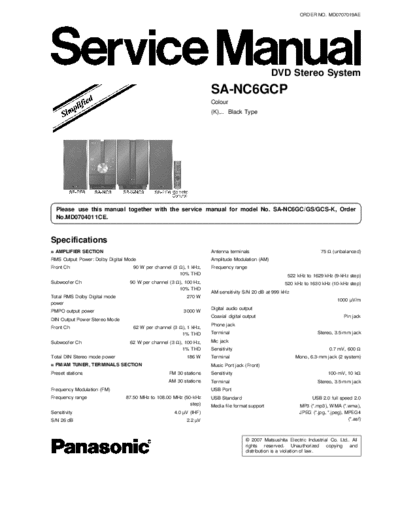

Image preview - the first page of the document
>> Download panasonic-sa-nc6gcp documenatation <<Text preview - extract from the document ORDER NO. MD0707019AE
DVD Stereo System
SA-NC6GCP
Colour
(K)... Black Type
Please use this manual together with the service manual for model No. SA-NC6GC/GS/GCS-K, Order
No.MD0704011CE.
Specifications
n AMPLIFIER SECTION Antenna terminals 75 (unbalanced)
RMS Output Power: Dolby Digital Mode Amplitude Modulation (AM)
Front Ch 90 W per channel (3 ), 1 kHz, Frequency range
10% THD 522 kHz to 1629 kHz (9-kHz step)
Subwoofer Ch 90 W per channel (3 ), 100 Hz, 520 kHz to 1630 kHz (10-kHz step)
10% THD
AM sensitivity S/N 20 dB at 999 kHz
Total RMS Dolby Digital mode 270 W
1000
