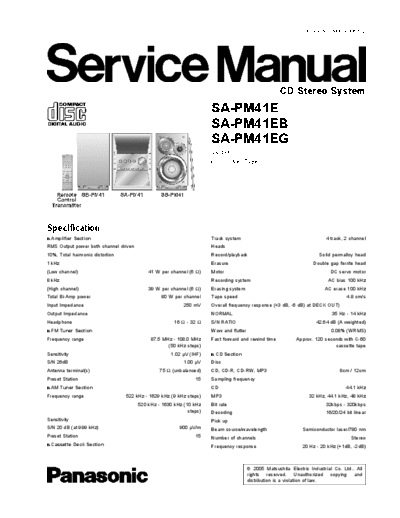

Image preview - the first page of the document



>> Download SA-PM41E documenatation <<

Text preview - extract from the document

                                                                                                               ORDER NO. MD0503061C2




                                                                                                     CD Stereo System
                                                                     SA-PM41E
                                                                     SA-PM41EB
                                                                     SA-PM41EG
                                                                     Colour
                                                                     (S)... Silver Type




Specification
n Amplifier Section                                                  Track system                                        4 track, 2 channel
RMS Output power both channel driven                                 Heads
10%, Total harmonic distortion                                       Record/playback                                  Solid permalloy head
1 kHz                                                                Erasure                                        Double gap ferrite head
(Low channel)                              41 W per channel (6 )     Motor                                                  DC servo motor
8 kHz                                                                Recording system                                     AC bias 100 kHz
(High channel)                             39 W per channel (6 )     Erasing system                                      AC erase 100 kHz
Total Bi-Amp power                               80 W per channel    Tape speed                                                    4.8 cm/s
Input Impedance                                           250 mV     Overall frequency response (+3 dB, -6 dB) at DECK OUT)
Output Impedance                                                     NORMAL                                                 35 Hz - 14 kHz
Headphone                                             16  - 32       S/N RATIO                                       42.64 dB (A weighted)
n FM Tuner Section                                                   Wow and flutter                                        0.08% (WRMS)
Frequency range                             87.5 MHz - 108.0 MHz     Fast forward and rewind time           Approx. 120 seconds with C-60
                                                   (50 kHz steps)                                                           cassette tape
Sensitivity                                          1.02
