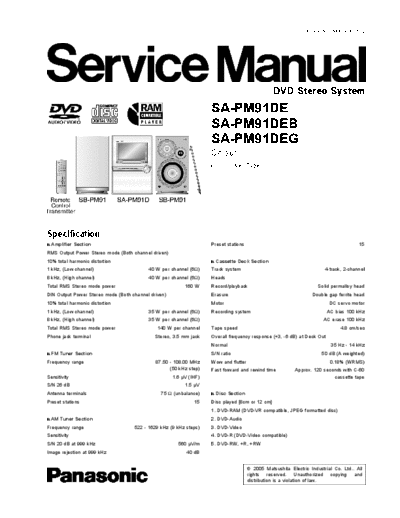

Image preview - the first page of the document



>> Download panasonic_sa-pm91de_sa-pm91deb_sa-pm91deg documenatation <<

Text preview - extract from the document

                                                                                                              ORDER NO. MD0503075C2




                                                                                                 DVD Stereo System
                                                                    SA-PM91DE
                                                                    SA-PM91DEB
                                                                    SA-PM91DEG
                                                                    Colour
                                                                    (S) ... Silver Type




Specification
n Amplifier Section                                                 Preset stations                                                    15
RMS Output Power Stereo mode (Both channel driven)
10% total harmonic distortion                                       n Cassette Deck Section
1 kHz, (Low channel)                      40 W per channel (6)      Track system                                        4-track, 2-channel
8 kHz, (High channel)                     40 W per channel (6)      Heads
Total RMS Stereo mode power                               160 W     Record/playback                                  Solid permalloy head
DIN Output Power Stereo mode (Both channel driven)                  Erasure                                       Double gap ferrite head
10% total harmonic distortion                                       Motor                                                 DC servo motor
1 kHz, (Low channel)                      35 W per channel (6)      Recording system                                     AC bias 100 kHz
8 kHz, (High channel)                     35 W per channel (6)                                                         AC erase 100 kHz
Total RMS Stereo mode power                   140 W per channel     Tape speed                                                 4.8 cm/sec
Phone jack terminal                          Stereo, 3.5 mm jack    Overall frequency response (+3, -6 dB) at Deck Out
                                                                    Normal                                                 35 Hz - 14 kHz
n FM Tuner Section                                                  S/N ratio                                          50 dB (A weighted)
Frequency range                              87.50 - 108.00 MHz     Wow and flutter                                       0.18% (WRMS)
                                                   (50 kHz step)    Fast forward and rewind time           Approx. 120 seconds with C-60
Sensitivity                                          1.6
