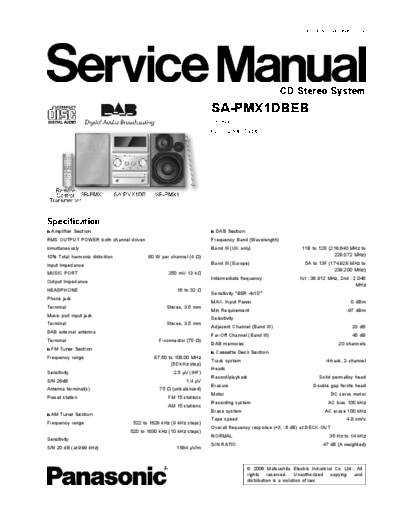

Image preview - the first page of the document
panasonic_sa-pmx1dbeb


>> Download panasonic_sa-pmx1dbeb documenatation <<

Text preview - extract from the document
                                                                                                          ORDER NO. MD0606218CE




                                                                                                CD Stereo System
                                                                  SA-PMX1DBEB
                                                                  Colour
                                                                  (S)... Silver Type




Specification
n Amplifier Section                                               n DAB Section
RMS OUTPUT POWER both channel driven                              Frequency Band (Wavelength)
simultaneously                                                    Band III (UK only)                      11B to 12D (218.640 MHz to
10% Total harmonic distortion          80 W per channel (4 )                                                            229.072 MHz)

Input Impedance                                                   Band III (Europe)                        5A to 13F (174.928 MHz to
                                                                                                                        239.200 MHz)
MUSIC PORT                                      250 mV 13 k
                                                                  Intermediate frequency                 1st : 38.912 MHz, 2nd : 2.048
Output Impedance
                                                                                                                                  MHz
HEADPHONE                                           16 to 32
                                                                  Sensitivity *BER 4x10-4
Phone jack
                                                                  MAX. Input Power                                              0 dBm
Terminal                                       Stereo, 3.5 mm
                                                                  Min Requirement                                             -97 dBm
Music port input jack
                                                                  Selectivity
Terminal                                       Stereo, 3.5 mm
                                                                  Adjacent Channel (Band III)                                   33 dB
DAB external antenna
                                                                  Far-Off Channel (Band III)                                    45 dB
Terminal                                    F-connector (75 )
                                                                  DAB memories                                            20 channels
n FM Tuner Section
                                                                  n Cassette Deck Section
Frequency range                           87.50 to 108.00 MHz
                                                                  Track system                                      4-track, 2-channel
                                                  (50 kHz step)
                                                                  Heads
Sensitivity                                       2.5
