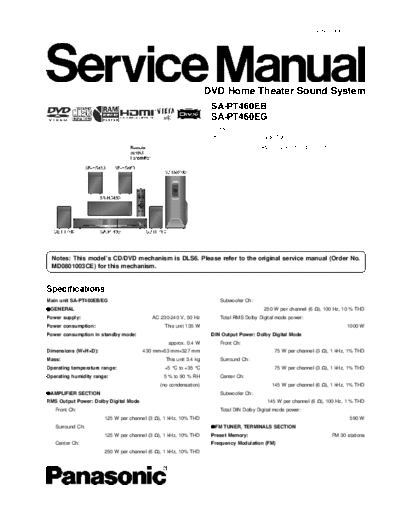

Image preview - the first page of the document

>> Download hfe_panasonic_sa-pt460_service_en documenatation <<

Text preview - extract from the document
                                                                                                             ORDER NO. MD0801001CE

                                                                  DVD Home Theater Sound System
                                                                   (K).......................Black Type
                                                                   (S).......................Silver Type (For EG Only)

  Notes: This model's CD/DVD mechanism is DLS6. Please refer to the original service manual (Order No.
  MD0801003CE) for this mechanism.

Main unit SA-PT460EB/EG                                                Subwoofer Ch:
 GENERAL                                                                                   250 W per channel (6 ), 100 Hz, 10 % THD
Power supply:                             AC 230-240 V, 50 Hz          Total RMS Dolby Digital mode power:
Power consumption:                             This unit 135 W                                                                 1000 W
Power consumption in standby mode:                                 DIN Output Power: Dolby Digital Mode
                                                approx. 0.4 W          Front Ch:
Dimensions (W
