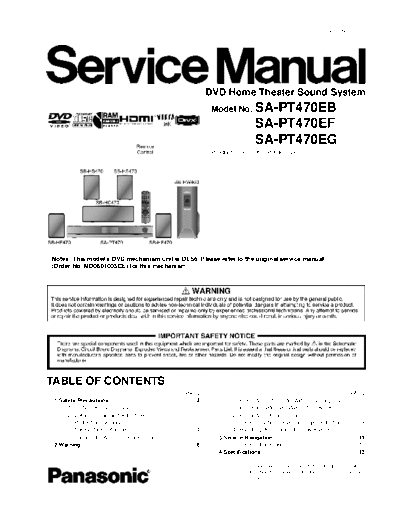

Image preview - the first page of the document
>> Download PSG0901001CE_PRINTDB documenatation <<Text preview - extract from the document PSG0901001CE
DVD Home Theater Sound System
Model No. SA-PT470EB
SA-PT470EF
SA-PT470EG
Product Color: (K)...Black Type
Notes: This model's DVD mechanism unit is DLS6. Please refer to the original service manual
(Order No. MD0801003CE) for this mechanism
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 2.1. Prevention of Electrostatic Discharge (ESD)
1.1. GENERAL GUIDELINES -------------------------------- 3 to Electrostatic Sensitive (ES) Devices---------------6
1.2. Before Repair and Adjustment ------------------------- 3 2.2. Precaution of Laser Diode -------------------------------7
1.3. Protection Circuitry ---------------------------------------- 3 2.3. Service caution based on Legal restrictions --------8
1.4. Safety Parts Information --------------------------------- 4 2.4. Handling Precautions for Traverse Unit --------------9
1.5. Caution for AC Cord (For EB only)-------------------- 5 3 Service Navigation --------------------------------------------- 11
2 Warning -------------------------------------------------------------- 6 3.1. Service Information -------------------------------------- 11
4 Specifications ---------------------------------------------------- 12
