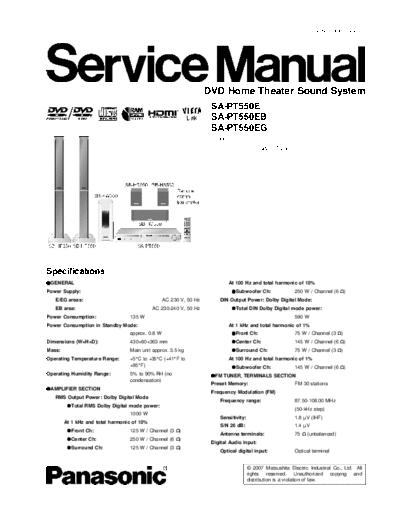

Image preview - the first page of the document
MD0703045CE_A_SA-PT550E


>> Download MD0703045CE_A_SA-PT550E documenatation <<

Text preview - extract from the document
                                                                                                                ORDER NO. MD0703045CE




                                                                    DVD Home Theater Sound System
                                                                     SA-PT550E
                                                                     SA-PT550EB
                                                                     SA-PT550EG
                                                                     Colour
                                                                     (S).......................Silver Type




Specifications
 GENERAL                                                                     At 100 Hz and total harmonic of 10%
Power Supply:                                                                   Subwoofer Ch:                250 W / Channel (6 )
   E/EG areas:                                    AC 230 V, 50 Hz        DIN Output Power: Dolby Digital Mode:
   EB area:                                  AC 230-240 V, 50 Hz                Total DIN Dolby Digital mode power:
Power Consumption:                135 W                                                                      590 W
Power Consumption in Standby Mode:                                           At 1 kHz and total harmonic of 1%
                                  approx. 0.8 W                                 Front Ch:                    75 W / Channel (3 )
