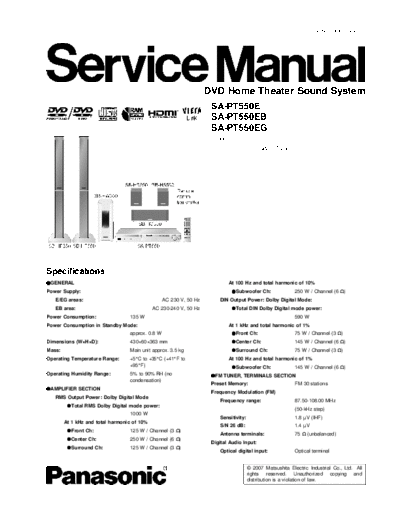

Image preview - the first page of the document
>> Download MD0703045CE_A_SA-PT550E documenatation <<Text preview - extract from the document ORDER NO. MD0703045CE
DVD Home Theater Sound System
SA-PT550E
SA-PT550EB
SA-PT550EG
Colour
(S).......................Silver Type
Specifications
GENERAL At 100 Hz and total harmonic of 10%
Power Supply: Subwoofer Ch: 250 W / Channel (6 )
E/EG areas: AC 230 V, 50 Hz DIN Output Power: Dolby Digital Mode:
EB area: AC 230-240 V, 50 Hz Total DIN Dolby Digital mode power:
Power Consumption: 135 W 590 W
Power Consumption in Standby Mode: At 1 kHz and total harmonic of 1%
approx. 0.8 W Front Ch: 75 W / Channel (3 )
Dimensions (W
