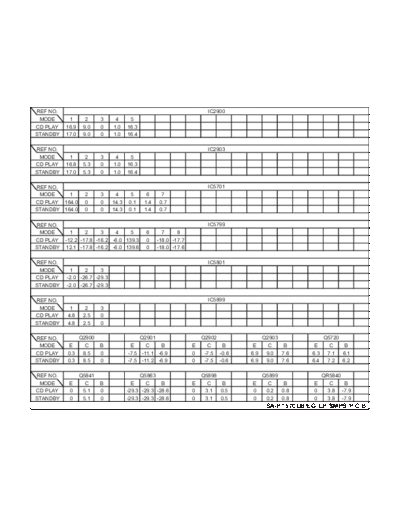

Image preview - the first page of the document
>> Download aa_sm_v documenatation <<
Text preview - extract from the document
REF NO. IC2900
MODE 1 2 3 4 5
CD PLAY 16.9 9.0 0 1.0 16.3
STANDBY 17.0 9.0 0 1.0 16.4
REF NO. IC2903
MODE 1 2 3 4 5
CD PLAY 16.8 5.3 0 1.0 16.3
STANDBY 17.0 5.3 0 1.0 16.4
REF NO. IC5701
MODE 1 2 3 4 5 6 7
CD PLAY 164.0 0 0 14.3 0.1 1.4 0.7
STANDBY 164.0 0 0 14.3 0.1 1.4 0.7
REF NO. IC5799
MODE 1 2 3 4 5 6 7 8
CD PLAY -12.2 -17.8 -16.2 -6.0 139.3 0 -18.0 -17.7
STANDBY 12.1 -17.8 -16.2 -6.0 139.6 0 -18.0 -17.6
REF NO. IC5801
MODE 1 2 3
CD PLAY -2.0 -26.7 -29.3
STANDBY -2.0 -26.7 -29.3
REF NO. IC5899
MODE 1 2 3
CD PLAY 4.8 2.5 0
STANDBY 4.8 2.5 0
REF NO. Q2900 Q2901 Q2902 Q2903 Q5720
MODE E C B E C B E C B E C B E C B
CD PLAY 0.3 8.5 0 -7.5 -11.1 -6.9 0 -7.5 -0.6 6.9 9.0 7.6 6.3 7.1 6.1
STANDBY 0.3 8.5 0 -7.5 -11.2 -6.9 0 -7.5 -0.6 6.9 9.0 7.6 6.4 7.2 6.2
REF NO. Q5841 Q5863 Q5898 Q5899 QR5840
MODE E C B E C B E C B E C B E C B
CD PLAY 0 5.1 0 -29.3 -29.3 -28.6 0 3.1 0.5 0 0.2 0.8 0 3.8 -7.9
STANDBY 0 5.1 0 -29.3 -29.3 -28.6 0 3.1 0.5 0 0.2 0.8 0 3.8 -7.9
SA-PT570EB/EG/EP SMPS P.C.B.
