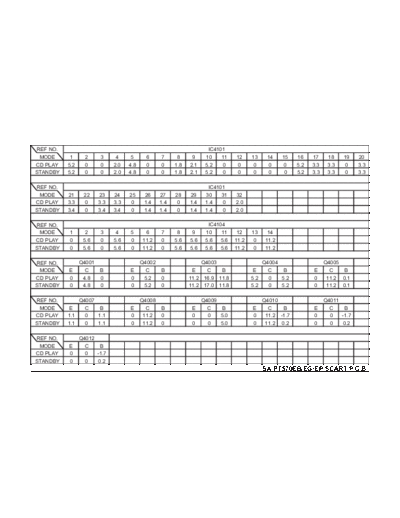

Image preview - the first page of the document
>> Download aa_sc_v documenatation <<Text preview - extract from the documentREF NO. IC4101
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
CD PLAY 5.2 0 0 2.0 4.8 0 0 1.8 2.1 5.2 0 0 0 0 0 5.2 3.3 3.3 0 3.3
STANDBY 5.2 0 0 2.0 4.8 0 0 1.8 2.1 5.2 0 0 0 0 0 5.2 3.3 3.3 0 3.3
REF NO. IC4101
MODE 21 22 23 24 25 26 27 28 29 30 31 32
CD PLAY 3.3 0 3.3 3.3 0 1.4 1.4 0 1.4 1.4 0 2.0
STANDBY 3.4 0 3.4 3.4 0 1.4 1.4 0 1.4 1.4 0 2.0
REF NO. IC4104
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14
CD PLAY 0 5.6 0 5.6 0 11.2 0 5.6 5.6 5.6 5.6 11.2 0 11.2
STANDBY 0 5.6 0 5.6 0 11.2 0 5.6 5.6 5.6 5.6 11.2 0 11.2
REF NO. Q4001 Q4002 Q4003 Q4004 Q4005
MODE E C B E C B E C B E C B E C B
CD PLAY 0 4.8 0 0 5.2 0 11.2 16.9 11.8 5.2 0 5.2 0 11.2 0.1
STANDBY 0 4.8 0 0 5.2 0 11.2 17.0 11.8 5.2 0 5.2 0 11.2 0.1
REF NO. Q4007 Q4008 Q4009 Q4010 Q4011
MODE E C B E C B E C B E C B E C B
CD PLAY 1.1 0 1.1 0 11.2 0 0 0 5.0 0 11.2 -1.7 0 0 -1.7
STANDBY 1.1 0 1.1 0 11.2 0 0 0 5.0 0 11.2 0.2 0 0 0.2
REF NO. Q4012
MODE E C B
CD PLAY 0 0 -1.7
STANDBY 0 0 0.2
SA-PT570EB/EG/EP SCART P.C.B.
