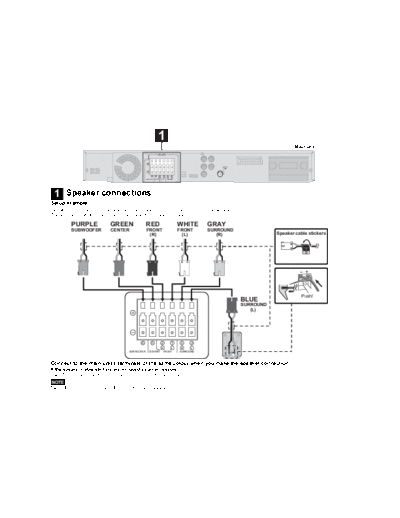

Image preview - the first page of the document
>> Download c9spkcn documenatation <<
Text preview - extract from the document
1
Main unit
SPEAKERS
Y
L
PB
R
FM ANT
AV OUT (75 )
PR
6 5 2 1 4 3
R L R L OPTICAL COMPONENT
SUBWOOFER CENTER FRONT SURROUND IN VIDEO OUT
1 Speaker connections
Setup example
Pay attention to the type of speaker and the connector colour when you place the speakers.
The speaker illustration below shows images of each speaker type.
PURPLE GREEN RED WHITE GRAY
SUBWOOFER CENTER FRONT FRONT SURROUND
(R) (L) (R) Speaker cable stickers
FRONT
Lch
1
Push!
BLUE
SURROUND
(L)
6 5 2 1 4 3
R L R L
SUBWOOFER CENTER FRONT SURROUND
Connect to the main unit s terminals of the same colour when you make the speaker connection.
If the speaker-cable stickers are included as an accessory:
Use of the speaker-cable stickers is convenient when making cable connections.
NOTE
Match the connector color and the type of speaker as shown above.
