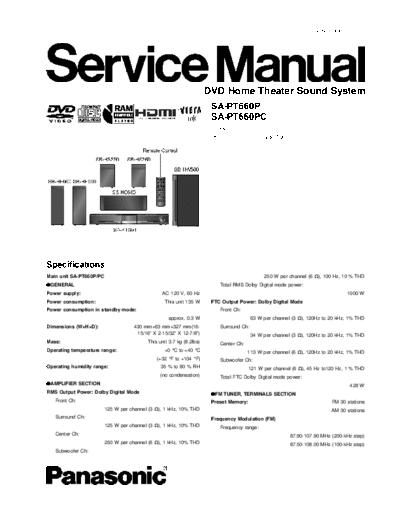

Image preview - the first page of the document

>> Download hfe_panasonic_sa-pt660p_660pc_service documenatation <<

Text preview - extract from the document
                                                                                                                   ORDER NO. MD0802005CE

                                                                      DVD Home Theater Sound System
                                                                       (K).......................Black Type

Main unit SA-PT660P/PC                                                                         250 W per channel (6 ), 100 Hz, 10 % THD
 GENERAL                                                                   Total RMS Dolby Digital mode power:
Power supply:                                   AC 120 V, 60 Hz                                                                      1000 W
Power consumption:                                This unit 135 W      FTC Output Power: Dolby Digital Mode
Power consumption in standby mode:                                         Front Ch:
                                                   approx. 0.3 W                          63 W per channel (3 ), 120Hz to 20 kHz, 1% THD
