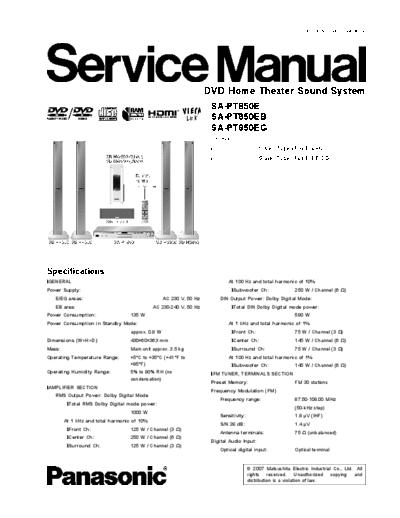

Image preview - the first page of the document

>> Download MD0704038CE_A_SA-PT850E documenatation <<

Text preview - extract from the document
                                                                                                                ORDER NO. MD0704038CE

                                                                     DVD Home Theater Sound System
                                                                      (S).......................Silver Type (For E only)
                                                                      (K).......................Black Type (For E/EB/EG)

lGENERAL                                                                     At 100 Hz and total harmonic of 10%
Power Supply:                                                                  lSubwoofer Ch:                250 W / Channel (6 )
   E/EG areas:                                     AC 230 V, 50 Hz       DIN Output Power: Dolby Digital Mode:
   EB area:                                  AC 230-240 V, 50 Hz               lTotal DIN Dolby Digital mode power:
Power Consumption:                 135 W                                                                     590 W
Power Consumption in Standby Mode:                                           At 1 kHz and total harmonic of 1%
                                   approx. 0.8 W                               lFront Ch:                    75 W / Channel (3 )
