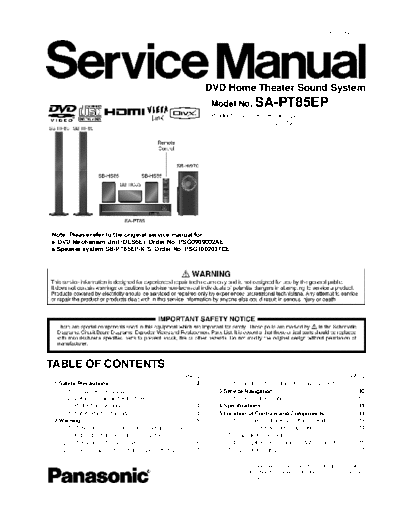

Image preview - the first page of the document
PSG1002035CE_PRINTDB


>> Download PSG1002035CE_PRINTDB documenatation <<

Text preview - extract from the document
                                                                                                                                       PSG1002035CE




                                                                              DVD Home Theater Sound System
                                                                               Model No. SA-PT85EP
                                                                               Product Color: (K)...Black Type
                                                                                              (S)...Silver Type




Note: Please refer to the original service manual for:
 DVD Mechanism Unit (DLS6E), Order No. PSG0909002AE
 Speaker system SB-PT85EP-K/S, Order No. PSG1002027CE




TABLE OF CONTENTS
                                                                    PAGE                                                                          PAGE
 1 Safety Precautions----------------------------------------------- 3              2.4. Handling Precautions for Traverse Unit --------------8
    1.1. GENERAL GUIDELINES -------------------------------- 3                   3 Service Navigation --------------------------------------------- 10
    1.2. Before Repair and Adjustment ------------------------- 3                   3.1. Service Information -------------------------------------- 10
    1.3. Protection Circuitry ---------------------------------------- 4         4 Specifications ---------------------------------------------------- 11
    1.4. Safety Parts Information --------------------------------- 4            5 Location of Controls and Components------------------ 13
 2 Warning -------------------------------------------------------------- 5         5.1. Remote Control Key Button Operations------------ 13
    2.1. Prevention of Electrostatic Discharge (ESD)                                5.2. Main Unit Key Button Operations -------------------- 14
         to Electrostatic Sensitive (ES) Devices -------------- 5                   5.3. Speaker Connection------------------------------------- 14
    2.2. Precaution of Laser Diode------------------------------- 6                 5.4. Using the VIERA Link "HDAVI ControlTM"---------- 15
    2.3. Service caution based on Legal restrictions -------- 7                     5.5. Disc Information ------------------------------------------ 17
