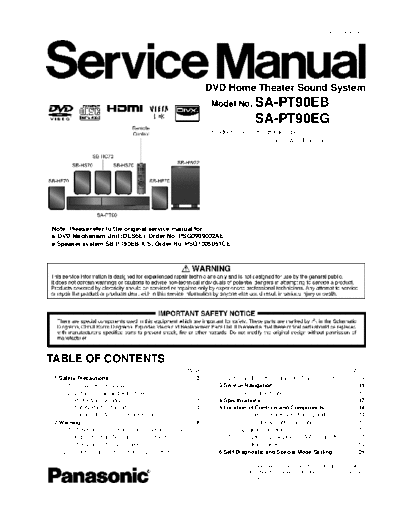

Image preview - the first page of the document
PSG1005050CE_PRINTDB


>> Download PSG1005050CE_PRINTDB documenatation <<

Text preview - extract from the document
                                                                                                                                         PSG1005050CE




                                                                              DVD Home Theater Sound System
                                                                               Model No. SA-PT90EB
                                                                                                    SA-PT90EG
                                                                               Product Color: (K)...Black Type
                                                                                              (S)...Silver Type (EG only)




Note: Please refer to the original service manual for:
 DVD Mechanism Unit (DLS6E), Order No. PSG0909002AE
 Speaker system SB-PT90EB-K/S, Order No. PSG1005051CE




TABLE OF CONTENTS
                                                                    PAGE                                                                            PAGE
 1 Safety Precautions----------------------------------------------- 3                2.4. Handling Precautions for Traverse Unit --------------9
    1.1. GENERAL GUIDELINES -------------------------------- 3                   3   Service Navigation --------------------------------------------- 11
    1.2. Before Repair and Adjustment ------------------------- 3                     3.1. Service Information -------------------------------------- 11
    1.3. Protection Circuitry ---------------------------------------- 4         4   Specifications ---------------------------------------------------- 12
    1.4. Safety Parts Information --------------------------------- 4            5   Location of Controls and Components------------------ 14
    1.5. Caution for AC Cord (For EB only)-------------------- 5                      5.1. Remote Control Key Button Operations------------ 14
 2 Warning -------------------------------------------------------------- 6           5.2. Main Unit Key Button Operations -------------------- 15
    2.1. Prevention of Electrostatic Discharge (ESD)                                  5.3. Speaker Connection------------------------------------- 16
         to Electrostatic Sensitive (ES) Devices -------------- 6                     5.4. Using the VIERA Link "HDAVI ControlTM"---------- 17
    2.2. Precaution of Laser Diode------------------------------- 7                   5.5. Disc Information ------------------------------------------ 19
    2.3. Service caution based on Legal restrictions -------- 8                  6   Self-Diagnostic and Special Mode Setting ------------- 21
