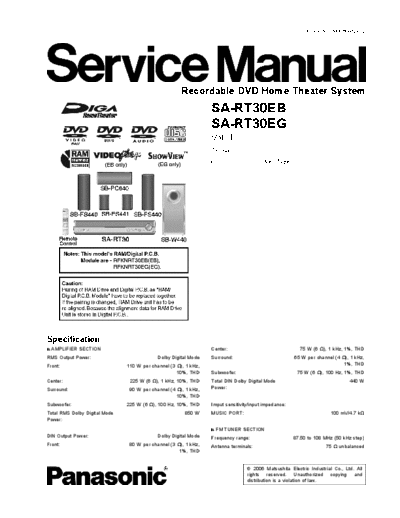

Image preview - the first page of the document
MD0604128C2_A_SA-RT30EB


>> Download MD0604128C2_A_SA-RT30EB documenatation <<

Text preview - extract from the document
                                                                                                            ORDER NO. MD0604128C2




                                                     Recordable DVD Home Theater System
                                                                SA-RT30EB
                                                                SA-RT30EG
                                                                Vol. 1
                                                                Colour
                                                                (S).......................Silver Type




Specification
n AMPLIFIER SECTION                                             Center:                                   75 W (6 ), 1 kHz, 1%, THD
RMS Output Power:                          Dolby Digital Mode   Surround:                               65 W per channel (4 ), 1 kHz,
Front:                         110 W per channel (3 ), 1 kHz,                                                               1%, THD
                                                    10%, THD    Subwoofer:                               75 W (6 ), 100 Hz, 1%, THD
Center:                         225 W (6 ), 1 kHz, 10%, THD     Total DIN Dolby Digital Mode                                   440 W
Surround:                       90 W per channel (4 ), 1 kHz,   Power:
                                                    10%, THD
Subwoofer:                     225 W (6 ), 100 Hz, 10%, THD     Imput sensitivity/input impedance:
Total RMS Dolby Digital Mode                          850 W     MUSIC PORT:                                            100 mV/4.7 k
Power:

                                                                n FM TUNER SECTION
DIN Output Power:                          Dolby Digital Mode   Frequency range:                        87.50 to 108 MHz (50 kHz step)
Front:                          80 W per channel (3 ), 1 kHz,   Antenna terminals:                                   75  unbalanced
                                                    1%, THD
