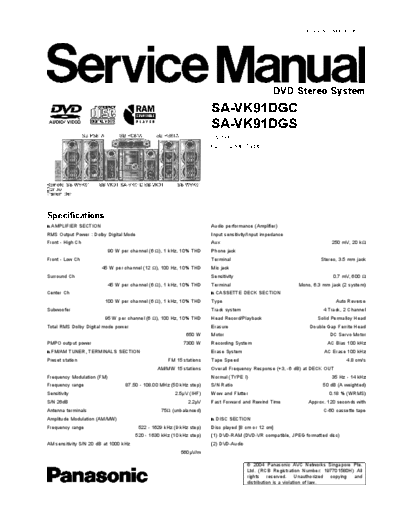

Image preview - the first page of the document
>> Download panasonic_sa-vk91dgc_sa-vk91dgs_sm documenatation <<Text preview - extract from the document ORDER NO. MD0407367C3
DVD Stereo System
SA-VK91DGC
SA-VK91DGS
Colour
(S)... Silver Type
Specifications
n AMPLIFIER SECTION Audio performance (Amplifier)
RMS Output Power : Dolby Digital Mode Input sensitivity/Input impedance
Front - High Ch Aux 250 mV, 20 k
90 W per channel (6 ), 1 kHz, 10% THD Phone jack
Front - Low Ch Terminal Stereo, 3.5 mm jack
45 W per channel (12 ), 100 Hz, 10% THD Mic jack
Surround Ch Sensitivity 0.7 mV, 600
45 W per channel (6 ), 1 kHz, 10% THD Terminal Mono, 6.3 mm jack (2 system)
Center Ch n CASSETTE DECK SECTION
100 W per channel (6 ), 1 kHz, 10% THD Type Auto Reverse
Subwoofer Track system 4 Track, 2 Channel
95 W per channel (6 ), 100 Hz, 10% THD Head Record/Playback Solid Permalloy Head
Total RMS Dolby Digital mode power Erasure Double Gap Ferrite Head
650 W Motor DC Servo Motor
PMPO output power 7300 W Recording System AC Bias 100 kHz
n FM/AM TUNER, TERMINALS SECTION Erase System AC Erase 100 kHz
Preset station FM 15 stations Tape Speed 4.8 cm/s
AM/MW 15 stations Overall Frequency Response (+3, -6 dB) at DECK OUT
Frequency Modulation (FM) Normal (TYPE I) 35 Hz - 14 kHz
Frequency range 87.50 - 108.00 MHz (50 kHz step) S/N Ratio 50 dB (A weighted)
Sensitivity 2.5
