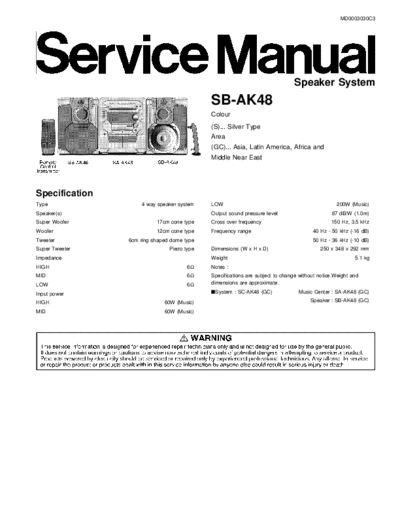

Image preview - the first page of the document
>> Download hfe_panasonic_sb-ak48_service documenatation <<
Text preview - extract from the document
MD0003030C3
Speaker System
SB-AK48
Colour
(S)... Silver Type
Area
(GC)... Asia, Latin America, Africa and
Middle Near East
Specification
Type 4 way speaker system LOW 200W (Music)
Speaker(s) Output sound pressure level 87 dB/W (1.0m)
Super Woofer 17cm cone type Cross over frequency 150 Hz, 3.5 kHz
Woofer 12cm cone type Frequency range 40 Hz - 50 kHz (-16 dB)
Tweeter 6cm ring shaped dome type 50 Hz - 36 kHz (-10 dB)
Super Tweeter Piezo type Dimensions (W x H x D) 250 x 348 x 292 mm
Impedance Weight 5.1 kg
HIGH 6 Notes :
MID 6 Specifications are subject to change without notice.Weight and
LOW 6 dimensions are approximate.
Input power sSystem : SC-AK48 (GC) Music Center : SA-AK48 (GC)
HIGH 60W (Music) Speaker : SB-AK48 (GC)
MID 60W (Music)
SB-AK48
1 Connection of the
Speaker Cables
