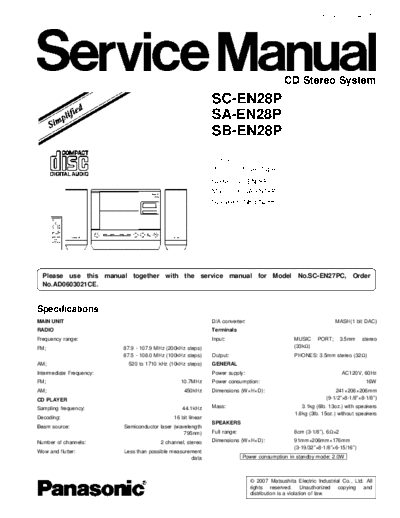

Image preview - the first page of the document

>> Download panasonic_sa-en28_ssm documenatation <<

Text preview - extract from the document
                                                                                                         ORDER NO.AD0704007AE

                                                                                             CD Stereo System
                                                              (S)............Silver Type
                                                              System SC-EN28P
                                                              Main Unit: SA-EN28P
                                                              Speakers: SB-EN28P

  Please use this manual together with the service manual for Model No.SC-EN27PC, Order

MAIN UNIT                                                     D/A converter:                                       MASH(1 bit DAC)
RADIO                                                         Terminals
Frequency range:                                              Input:                             MUSIC     PORT;     3.5mm    stereo
FM;                       87.9 - 107.9 MHz (200kHz steps)                                        (33k)
                          87.5 - 108.0 MHz (100kHz steps)     Output:                            PHONES: 3.5mm stereo (32)
AM;                        520 to 1710 kHz (10kHz steps)      GENERAL
Intermediate Frequency:                                       Power supply:                                          AC120V, 60Hz
FM;                                              10.7MHz      Power consumption:                                               16W
AM;                                               450kHz      Dimensions (W
