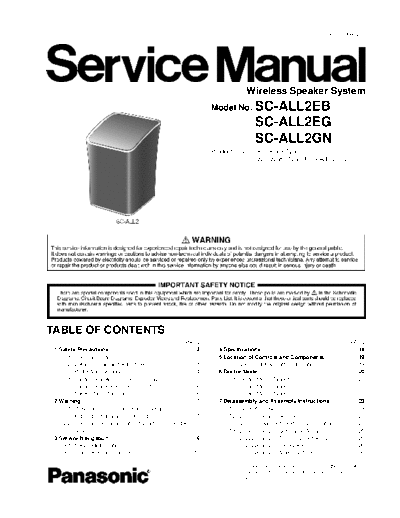

Image preview - the first page of the document
PSG1506002CE_PRINTDB


>> Download PSG1506002CE_PRINTDB documenatation <<

Text preview - extract from the document
                                                                                                                                      PSG1506002CE




                                                                                             Wireless Speaker System
                                                                              Model No. SC-ALL2EB
                                                                                                 SC-ALL2EG
                                                                                                 SC-ALL2GN
                                                                              Product Color: (K)...Black Type
                                                                                             (W)...White Type (For EB/EG only)




TABLE OF CONTENTS
                                                                    PAGE                                                                         PAGE
 1 Safety Precautions----------------------------------------------- 3          4 Specifications ---------------------------------------------------- 18
    1.1. General Guidelines---------------------------------------- 3           5 Location of Controls and Components------------------ 19
    1.2. Before Repair and Adjustment ------------------------- 4                  5.1. Main Unit Key Button Operations -------------------- 19
    1.3. Protection Circuitry ---------------------------------------- 4        6 Doctor Mode ------------------------------------------------------ 20
    1.4. Caution For AC Cord (For EB only)------------------- 5                    6.1. Doctor Mode Table 1 ------------------------------------ 20
    1.5. Caution For Fuse Replacement------------------------ 6                    6.2. Doctor Mode Table 2 ------------------------------------ 21
    1.6. Safety Part Information----------------------------------- 6              6.3. Doctor Mode Table 3 ------------------------------------ 22
 2 Warning -------------------------------------------------------------- 7     7 Disassembly and Assembly Instructions--------------- 23
    2.1. Prevention of Electrostatic Discharge (ESD)                               7.1. Type of Screws ------------------------------------------- 23
         to Electrostatically Sensitive (ES) Devices---------- 7                   7.2. Disassembly Flow Chart ------------------------------- 23
    2.2. General description about Lead Free Solder                                7.3. Main Components and P.C.B. Locations----------- 24
         (PbF)---------------------------------------------------------- 8         7.4. Disassembly of Net Frame Ass'y -------------------- 25
 3 Service Navigation ----------------------------------------------- 9            7.5. Disassembly of Top Ornament Ass'y---------------- 25
    3.1. Service Information --------------------------------------- 9             7.6. Disassembly of Receiver P.C.B.---------------------- 26
    3.2. Troubleshooting Guide ----------------------------------12                7.7. Disassembly of Antenna P.C.B. ---------------------- 26
