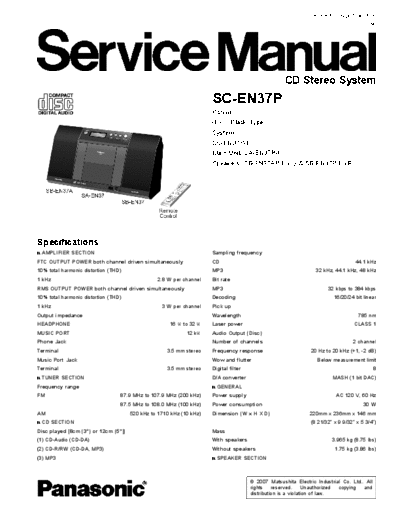

Image preview - the first page of the document
>> Download panasonic-sc-en37p documenatation <<
Text preview - extract from the document
ORDER NO. MD0703021CE
A6
CD Stereo System
SC-EN37P
Colour
(K)... Black Type
System
SC-EN37P-K
Main Unit: SA-EN37P-K
Speakers: SB-EN37AP-K (L) & SB-EN37P-K (R)
Specifications
n AMPLIFIER SECTION Sampling frequency
FTC OUTPUT POWER both channel driven simultaneously CD 44.1 kHz
10% total harmonic distortion (THD) MP3 32 kHz, 44.1 kHz, 48 kHz
1 kHz 2.8 W per channel Bit rate
RMS OUTPUT POWER both channel driven simultaneously MP3 32 kbps to 384 kbps
10% total harmonic distortion (THD) Decoding 16/20/24 bit linear
1 kHz 3 W per channel Pick up
Output impedance Wavelength 785 nm
HEADPHONE 16 W to 32 W Laser power CLASS 1
MUSIC PORT 12 kW Audio Output (Disc)
Phone Jack Number of channels 2 channel
Terminal 3.5 mm stereo Frequency response 20 Hz to 20 kHz (+1, -2 dB)
Music Port Jack Wow and flutter Below measurement limit
Terminal 3.5 mm stereo Digital filter 8
n TUNER SECTION D/A converter MASH (1 bit DAC)
Frequency range n GENERAL
FM 87.9 MHz to 107.9 MHz (200 kHz) Power supply AC 120 V, 60 Hz
87.5 MHz to 108.0 MHz (100 kHz) Power consumption 30 W
AM 520 kHz to 1710 kHz (10 kHz) Dimension (W x H X D) 220mm x 236mm x 146 mm
n CD SECTION (8 21/32" x 9 9/32" x 5 3/4")
Disc played [8cm (3") or 12cm (5")] Mass
(1) CD-Audio (CD-DA) With speakers 3.965 kg (8.75 lbs)
(2) CD-R/RW (CD-DA, MP3) Without speakers 1.75 kg (3.86 lbs)
(3) MP3 n SPEAKER SECTION
