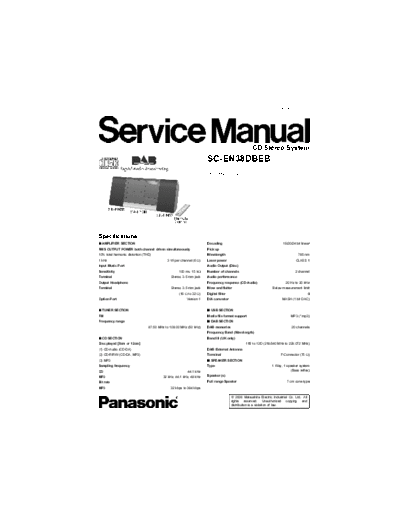

>> Download MD0803005CE_PRINTDB documenatation <<Text preview - extract from the document ORDER NO. MD0803005CE
CD Stereo System
SC-EN38DBEB
Colour
(K)... Black Type
Specifications
I AMPLIFIER SECTION Decoding 16/20/24 bit linear
RMS OUTPUT POWER both channel driven simultaneously Pick up
10% total harmonic distortion (THD) Wavelength 785 nm
1 kHz 3 W per channel (6 ) Laser power CLASS 1
Input Music Port Audio Output (Disc)
Sensitivity 100 mv, 15 k Number of channels 2 channel
Terminal Stereo, 3.5 mm jack Audio performance
Output Headphone Frequency response (CD-Audio) 20 Hz to 20 kHz
Terminal Stereo, 3.5 mm jack Wow and flutter Below measurement limit
(16 to 32 ) Digital filter 8
Option Port Version 1 D/A converter MASH (1 bit DAC)
I TUNER SECTION I USB SECTION
FM Media file format support MP3 (*.mp3)
Frequency range I DAB SECTION
87.50 MHz to 108.00 MHz (50 kHz) DAB memories 20 channels
Frequency Band (Wavelength)
I CD SECTION Band III (UK only)
Disc played [8cm or 12cm] 11B to 12D (218.640 MHz to 229.072 MHz)
(1) CD-Audio (CD-DA) DAB External Antenna
(2) CD-R/RW (CD-DA, MP3) Terminal F-Connector (75 )
(3) MP3 I SPEAKER SECTION
Sampling frequency Type 1 Way, 1 speaker system
CD 44.1 kHz (Bass reflex)
MP3 32 kHz, 44.1 kHz, 48 kHz Speaker (s)
Bit rate Full range Speaker 7 cm cone type
MP3 32 kbps to 384 kbps
