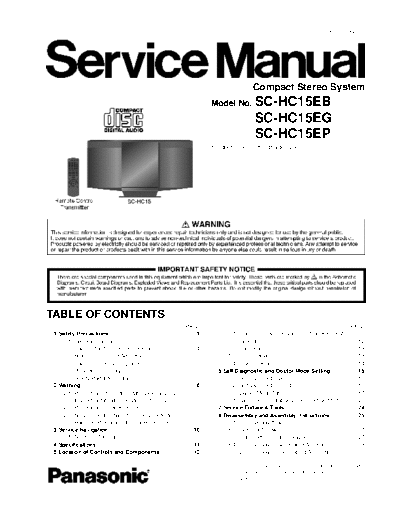

Image preview - the first page of the document
>> Download PSG1103025CE_PRINTDB documenatation <<
Text preview - extract from the document
PSG1103025CE
Compact Stereo System
Model No. SC-HC15EB
SC-HC15EG
SC-HC15EP
Product Color: (K)...Black Type
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 5.1. Main Unit & Remote Control Key Button
1.1. General Guidelines---------------------------------------- 3 Operations ------------------------------------------------- 12
1.2. Caution for AC Cord (For EB only)-------------------- 4 5.2. Connections ----------------------------------------------- 13
1.3. Before Repair and Adjustment ------------------------- 5 5.3. Disc operations ------------------------------------------- 13
1.4. Caution For Fuse Replacement------------------------ 5 5.4. USB Operation-------------------------------------------- 14
1.5. Protection Circuitry ---------------------------------------- 5 6 Self Diagnostic and Doctor Mode Setting -------------- 15
1.6. Safety Part Information----------------------------------- 5 6.1. Self Diagnostic Mode ----------------------------------- 15
2 Warning -------------------------------------------------------------- 6 6.2. Self Diagnostic Function Error Code ---------------- 16
2.1. Prevention of Electro Static Discharge (ESD) 6.3. Doctor Mode Table--------------------------------------- 17
to Electrostatically Sensitive (ES) Devices---------- 6 6.4. Sales Demonstration Lock Function Mode -------- 23
2.2. Precaution of Laser Diode------------------------------- 7 7 Service Fixture & Tools --------------------------------------- 24
2.3. Service caution based on Legal restrictions -------- 8 8 Disassembly and Assembly Instructions--------------- 25
2.4. Handling Precaution for Traverse Deck-------------- 9 8.1. Disassembly flow chart --------------------------------- 26
3 Service Navigation ----------------------------------------------10 8.2. Types of Screws------------------------------------------ 27
3.1. Service Information --------------------------------------10 8.3. Main Parts Location Diagram ------------------------- 27
4 Specifications ----------------------------------------------------11 8.4. Disassembly of Net Frame Assembly--------------- 28
5 Location of Controls and Components ------------------12 8.5. Disassembly of Base Stand Assembly ------------- 30
