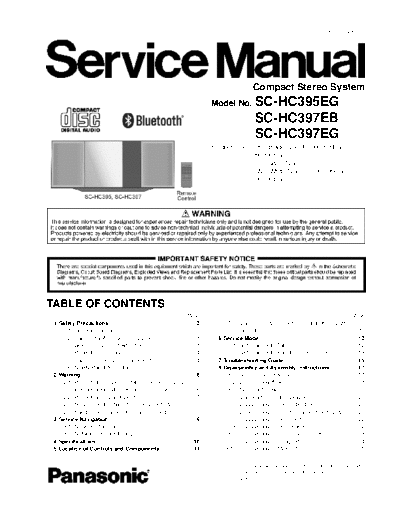

Image preview - the first page of the document
>> Download PSG1602001CE_PRINTDB documenatation <<
Text preview - extract from the document
PSG1602001CE
Compact Stereo System
Model No. SC-HC395EG
SC-HC397EB
SC-HC397EG
Product Color: (K)...Black Type (For HC395EG,
HC397EG)
(S)...Silver Type
(W)...White Type (For HC395EG,
HC397EG)
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 5.1. Main Unit & Remote Control Key Button
1.1. General Guidelines---------------------------------------- 3 Operations ------------------------------------------------- 11
1.2. Caution for AC Cord (For EB only)-------------------- 4 6 Service Mode ----------------------------------------------------- 12
1.3. Before Repair and Adjustment ------------------------- 4 6.1. Self Diagnostic Table------------------------------------ 12
1.4. Protection Circuitry ---------------------------------------- 4 6.2. Self Diagnostic Function Error Code ---------------- 13
1.5. Caution For Fuse Replacement------------------------ 4 7 Troubleshooting Guide --------------------------------------- 15
1.6. Safety Part Information----------------------------------- 5 8 Disassembly and Assembly Instructions--------------- 17
2 Warning -------------------------------------------------------------- 6 8.1. Service Fixture & Tools --------------------------------- 17
2.1. Prevention of Electrostatic Discharge (ESD) 8.2. Disassembly flow chart --------------------------------- 18
to Electrostatically Sensitive (ES) Devices---------- 6 8.3. Types of Screws------------------------------------------ 20
2.2. Precaution of Laser Diode------------------------------- 7 8.4. Main Parts Location Diagram ------------------------- 20
2.3. Service caution based on Legal restrictions -------- 7 8.5. Disassembly of Base Stand Unit --------------------- 21
2.4. Handling Precaution for Traverse Unit --------------- 8 8.6. Disassembly of Front Ornament Unit (L) & (R) --- 21
3 Service Navigation ----------------------------------------------- 9 8.7. Disassembly of Door Unit ------------------------------ 22
3.1. Service Information --------------------------------------- 9 8.8. Disassembly of Door Base ---------------------------- 22
3.2. Software Update through USB ------------------------- 9 8.9. Disassembly of Front Panel Block ------------------- 23
4 Specifications ----------------------------------------------------10 8.10. Disassembly of Bridge P.C.B.------------------------- 24
5 Location of Controls and Components ------------------11 8.11. Disassembly of Motor P.C.B.-------------------------- 25
