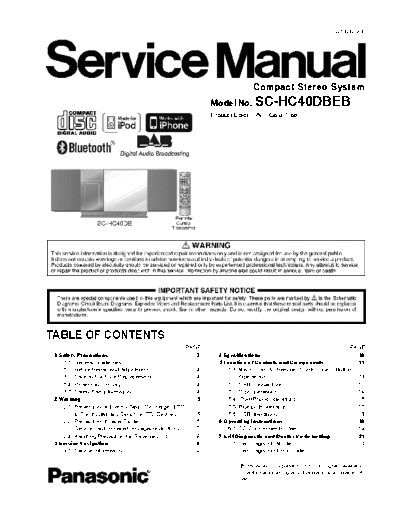

Image preview - the first page of the document
>> Download PSG1003039CE_PRINTDB documenatation <<
Text preview - extract from the document
PSG1003039CE
Compact Stereo System
Model No. SC-HC40DBEB
Product Color: (N)...Gold Type
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 4 Specifications ---------------------------------------------------- 10
1.1. General Guidelines---------------------------------------- 3 5 Location of Controls and Components------------------ 11
1.2. Before Repair and Adjustment ------------------------- 4 5.1. Main Unit & Remote Control Key Button
1.3. Caution For Fuse Replacement------------------------ 4 Operations ------------------------------------------------- 11
1.4. Protection Circuitry ---------------------------------------- 4 5.2. DAB Connections ---------------------------------------- 12
1.5. Safety Part Information----------------------------------- 4 5.3. Disc operations ------------------------------------------- 14
2 Warning -------------------------------------------------------------- 5 5.4. iPod/iPhone operations--------------------------------- 16
2.1. Prevention of Electro Static Discharge (ESD) 5.5. Bluetooth operations ------------------------------------ 17
to Electrostatically Sensitive (ES) Devices---------- 5 5.6. USB operations------------------------------------------- 18
2.2. Precaution of Laser Diode------------------------------- 6 6 Operating Instructions ---------------------------------------- 19
2.3. Service caution based on Legal restrictions -------- 7 6.1. CD Door Assembly Jam-------------------------------- 19
2.4. Handling Precaution for Traverse Unit --------------- 8 7 Self Diagnostic and Doctor Mode Setting -------------- 21
3 Service Navigation ----------------------------------------------- 9 7.1. Self Diagnostic Mode ----------------------------------- 21
3.1. Service Information --------------------------------------- 9 7.2. Self Diagnostic Error Code ---------------------------- 22
