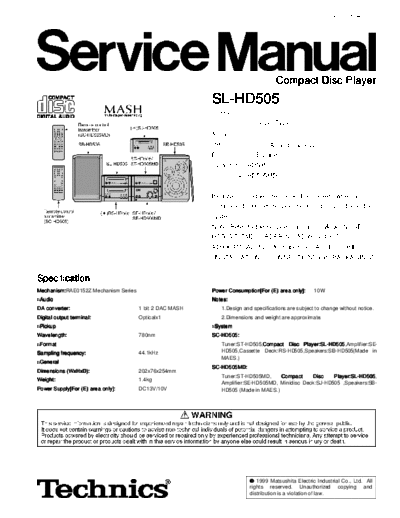

Image preview - the first page of the document
>> Download ad9904111c5 documenatation <<Text preview - extract from the document ORDER NO.AD9904111C5
A6
C o m p a c t D i s c P l a ye r
SL-HD505
SL-HD505
Colour
(S)....................Silver Type
Areas
PP....................U.S.A. and Canada.
E......................Europe.
System:SC-HD505
SC-HD505MD
Bicause of unique interconnecting cables, when a
component requires service, send or bring in the entire
system.
Note: Refer to the service manual for Model No.SE-
HD505/505MD (ORDER NO.AD9904110C5/
AD9904116A2) for information on "ACCESSORIES",
"INSTALLATION", "CONNECTION" and "PACKAGING".
Specification
Mechanism:RAE0152Z Mechanism Series
Mechanism: Consumption[For
Power Consumption[For (E) area only]: 10W
nAudio
Audio Notes:
DA converter: 1 bit 2 DAC MASH 1.Design and specifications are subject to change without notice.
Digital output terminal: Opticalx1 2.Dimensions and weight are approximate.
nPickup
Pickup nSystem
System
Wavelength:
Wavelength: 780nm SC-HD505:
SC-HD505:
nFormat
Format Tuner:ST-HD505,Compact Disc Player:SL-HD505
Compact Player:SL-HD505
D505,Amplifier:SE-
Sampling frequency: 44.1kHz HD505,Cassette Deck:RS-HD505,Speakers:SB-HD505(Made in
MAES.)
nGeneral
General
SC-HD505MD:
SC-HD505MD:
Dimensions (WxHxD): 202x76x254mm
Tuner:ST-HD505MD, Compact Disc Player:SL-HD505
HD505,
Player:SL-HD505
Weight: 1.4kg
Amplifier:SE-HD505MD, Minidisc Deck:SJ-HD505 ,Speakers:SB-
Power Supply[For (E) area only]: DC13V/10V HD505 (Made in MAES.)
