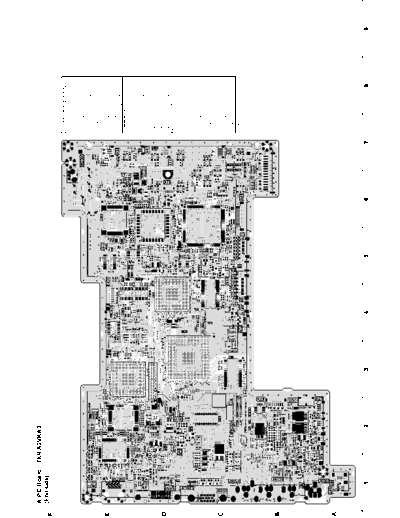

A-P.C.Board TXN/A2VKA3
(Foil side)
A-P.C.Board (Foil Side)
IC
IC2002 E-1 IC3020 D-2
IC2006 E-2 IC3025 E-1
IC2009 D-3 IC3034 D-4
IC2502 E-4 IC3035 C-4
IC2503 D-4 IC3038 D-5
IC2505 D-5 IC3049 C-6
IC2507 D-5 IC3601 C-4
IC2508 E-4 IC3614 B-2
IC2509 E-6 IC3623 B-2
IC2519 C-4 IC3628 E-5
IC2522 E-4 IC3629 D-3
IC3008 A-1 IC3631 C-3
IC3011 B-1 IC3635 B-2
IC3019 C-2 IC3641 B-2
TRANSISTOR
Q2501 C-4 Q3005 B-1
Q2503 C-6 Q3006 B-1
Q2505 C-7 Q3008 D-2
Q2507 C-6 Q3009 D-2
Q2508 E-6 Q3010 C-1
Q2509 C-7 Q3012 C-1
Q2512 C-6 Q3014 D-2
Q3000 B-2 Q3015 D-2
Q3001 A-2 Q3017 D-1
Q3002 D-1 Q3018 D-1
Q3003 B-1 Q3627 C-3
Q3004 D-1 Q3628 D-3
TP
TPA1 B-1 TPA17 D-5
TPA2 B-2 TPA21 E-5
TPA3 B-2 TPA22 E-5
TPA4 D-2 TPA23 D-6
TPA5 D-2 TPA24 D-6
TPA6 D-2 TPA25 D-6
TPA7 B-1 TPA26 D-6
TPA8 C-1 TPA27 D-6
TPA9 C-1 TPA28 D-5
TPA10 C-1 TPA29 E-5
TPA11 D-5 TPA41 D-2
TPA12 D-5 TPA42 D-2
TPA13 D-5 TPA43 D-2
TPA14 E-2 TPA44 D-2
TPA15 D-4 TPA45 D-2
TPA16 D-4 TPA51 B-2
