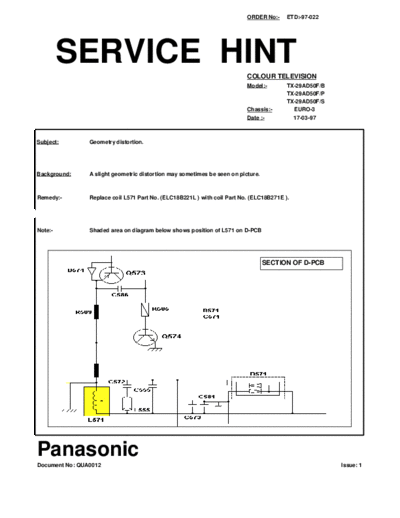

Image preview - the first page of the document



>> Download 97022 documenatation <<

Text preview - extract from the document

                                                                          ORDER No:-     ETD:-97-022




         SERVICE HINT                                                     COLOUR TELEVISION
                                                                          Model:-        TX-29AD50F/B
                                                                                         TX-29AD50F/P
                                                                                         TX-29AD50F/S
                                                                          Chassis:-        EURO-3
                                                                          Date :-          17-03-97



Subject:        Geometry distortion.




Background:     A slight geometric distortion may sometimes be seen on picture.



Remedy:-        Replace coil L571 Part No. (ELC18B221L ) with coil Part No. (ELC18B271E ).




Note:-          Shaded area on diagram below shows position of L571 on D-PCB




                                                                                  SECTION OF D-PCB




Panasonic
Document No: QUA0012                                                                                    Issue: 1
