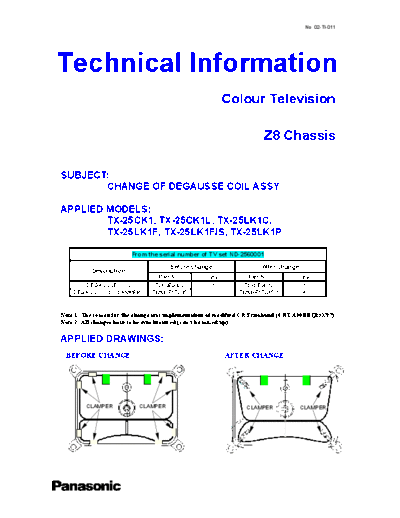

Image preview - the first page of the document
02-TI-011


>> Download 02-TI-011 documenatation <<

Text preview - extract from the document
                                                                                     No 02-TI-011




Technical Information
                                                        Colour Television

                                                                     Z8 Chassis

SUBJECT:
       CHANGE OF DEGAUSSE COIL ASSY

APPLIED MODELS:
        TX-25CK1, TX-25CK1L, TX-25LK1C,
        TX-25LK1F, TX-25LK1F/S, TX-25LK1P

                        From the serial number of TV set ND-2560001

                                     Before change                   After change
          Description
                                 Part No.         Qty           Part No.            Qty
       DEGAUSSE COIL            TLK0E9002          1          TLK0E9012             1
    DEGAUS. COIL CLAMPER       TMM8E17935          8         TMM8E17935-1           4



Note 1: The reason for the change was implementation of modified CRT rimband (CRT A59EEQ15X97)
Note 2: All changes have to be synchronized.(can't be mixed up)

APPLIED DRAWINGS:
 BEFORE CHANGE                                          AFTER CHANGE




        CLAMPER           CLAMPER                              CLAMPER              CLAMPER
