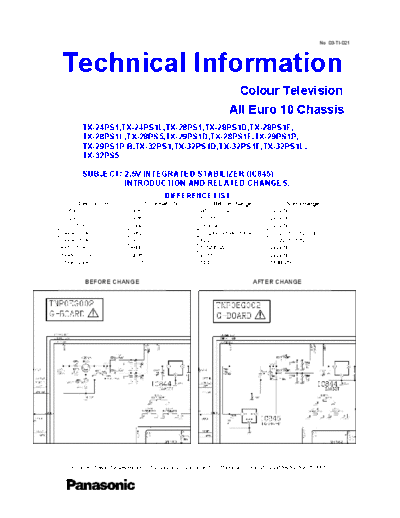

Image preview - the first page of the document
>> Download 03-TI-021 documenatation <<
Text preview - extract from the document
No 03-TI-021
Technical Information
Colour Television
All Euro 10 Chassis
TX-24PS1,TX-24PS1L,TX-28PS1,TX-28PS1D,TX-28PS1F,
TX-28PS1L,TX-28PS5,TX-29PS1D,TX-28PS1F,TX-29PS1P,
TX-29PS1P/B,TX-32PS1,TX-32PS1D,TX-32PS1F,TX-32PS1L,
TX-32PS5
SUBJECT: 2,5V INTEGRATED STABILIZER (IC845)
INTRODUCTION AND RELATED CHANGES.
DIFFERENCE LIST
Description Schematic No Before change After change
DIODE D835 MTZJT-773.9A DELETE
DIODE D836 1SS133T-77 DELETE
RESISTOR R809 ERJ6GEYJ122V DELETE
CAPACITOR C862 ECJ2FB1H104K/ 100nF ECJ2VF1C105Z/ 1◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
