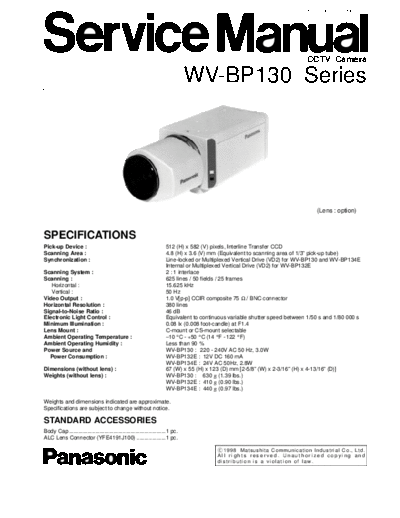

Image preview - the first page of the document
>> Download Abp130e documenatation <<
Text preview - extract from the document
ORDER NO. AVS9806107C8
CCTV Camera
WV-BP130 Series
(Lens : option)
SPECIFICATIONS
Pick-up Device : 512 (H) x 582 (V) pixels, Interline Transfer CCD
Scanning Area : 4.8 (H) x 3.6 (V) mm (Equivalent to scanning area of 1/3" pick-up tube)
Synchronization : Line-locked or Multiplexed Vertical Drive (VD2) for WV-BP130 and WV-BP134E
Internal or Multiplexed Vertical Drive (VD2) for WV-BP132E
Scanning System : 2 : 1 interlace
Scanning : 625 lines / 50 fields / 25 frames
Horizontal : 15.625 kHz
Vertical : 50 Hz
Video Output : 1.0 V[p-p] CCIR composite 75 / BNC connector
Horizontal Resolution : 380 lines
Signal-to-Noise Ratio : 46 dB
Electronic Light Control : Equivalent to continuous variable shutter speed between 1/50 s and 1/80 000 s
Minimum Illumination : 0.08 lx (0.008 foot-candle) at F1.4
Lens Mount : C-mount or CS-mount selectable
Ambient Operating Temperature : -10 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
