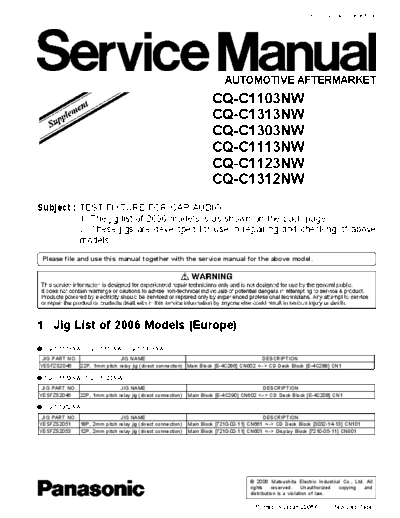

Image preview - the first page of the document
>> Download aced060615s8 documenatation <<
Text preview - extract from the document
ORDER NO. ACED060615S8
AUTOMOTIVE AFTERMARKET
CQ-C1103NW
CQ-C1313NW
CQ-C1303NW
CQ-C1113NW
CQ-C1123NW
CQ-C1312NW
Subject : TEST FIXTURE FOR CAR AUDIO
1. The jig list of 2006 models is as shown on the back page.
2. These jigs are developed for use in repairing and checking of above
models.
Please file and use this manual together with the service manual for the above model.
1 Jig List of 2006 Models (Europe)
q CQ-C1103NW, CQ-C1313NW, CQ-C1303NW
JIG PART NO. JIG NAME DESCRIPTION
YESFZS2046 22P, 1mm pitch relay jig (direct connection) Main Block [E-4C286] CN602 <--> CD Deck Block [E-4C288] CN1
q CQ-C1113NW, CQ-C1123NW
JIG PART NO. JIG NAME DESCRIPTION
YESFZS2046 22P, 1mm pitch relay jig (direct connection) Main Block [E-4C290] CN602 <--> CD Deck Block [E-4C208] CN1
q CQ-C1312NW
JIG PART NO. JIG NAME DESCRIPTION
YESFZS2051 18P, 2mm pitch relay jig (direct connection) Main Block [7210-02-11] CN661 <--> CD Deck Block [3032-14-13] CN101
YESFZS2053 12P, 2mm pitch relay jig (direct connection) Main Block [7210-02-11] CN601 <--> Display Block [7210-05-11] CN901
