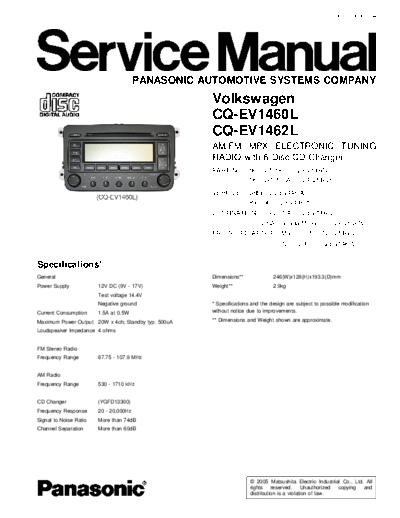

Image preview - the first page of the document
>> Download panasonic_cq-ev1460_cq-ev1462l_volkswagen documenatation <<
Text preview - extract from the document
ORDER No. AED0501034
PANASONIC AUTOMOTIVE SYSTEMS COMPANY
Volkswagen
CQ-EV1460L
CQ-EV1462L
AM/FM MPX ELECTRONIC TUNING
RADIO with 6-Disc CD Changer
PART No. : 1K0 035 180 (CQ-EV1460L)
: 1K0 035 180A (CQ-EV1462L)
VEHICLE : Jetta (CQ-EV1460L)
: Passat (CQ-EV1462L)
DESTINATION : Only USA (CQ-EV1460L)
: USA/Canada/Mexico (CQ-EV1462L)
PRODUCED AFTER : Mar., 2005 (CQ-EV1460L)
: July., 2005 (CQ-EV1462L)
Specifications*
General Dimensions** 246(W)x128(H)x193.3(D)mm
Power Supply 12V DC (9V - 17V) Weight** 2.9kg
Test voltage 14.4V
Negative ground * Specifications and the design are subject to possible modification
Current Consumption 1.5A at 0.5W without notice due to improvements.
Maximum Power Output 20W x 4ch; Standby typ. 500uA ** Dimensions and Weight shown are approximate.
Loudspeaker Impedance 4 ohms
FM Stereo Radio
Frequency Range 87.75 - 107.9 MHz
AM Radio
Frequency Range 530 - 1710 kHz
CD Changer (YGFD13300)
Frequency Response 20 - 20,000Hz
Signal to Noise Ratio More than 74dB
Channel Separation More than 60dB
