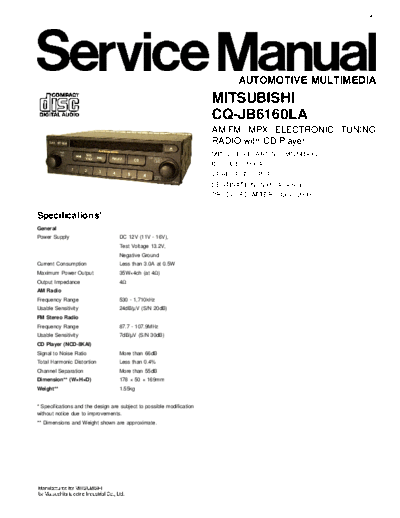

Image preview - the first page of the document
CQ-JB6160LA


>> Download CQ-JB6160LA documenatation <<

Text preview - extract from the document
                                                                                                       ORDER No.5047
                                                                                                                   I0




                                                                              AUTOMOTIVE MULTIMEDIA
                                                                       MITSUBISHI
                                                                       CQ-JB6160LA
                                                                       AM/FM MPX ELECTRONIC TUNING
                                                                       RADIO with CD Player
                                                                       MITSUBISHI PART No. :MN141493
                                                                       ID CODE :P0304
                                                                       VEHICLE :ECLIPSE
                                                                       DESTINATION :North America
                                                                       PRODUCED AFTER : June, 2003


Specifications*
General
Power Supply                       DC 12V (11V - 16V),
                                   Test Voltage 13.2V,
                                   Negative Ground
Current Consumption                Less than 3.0A at 0.5W
Maximum Power Output               35W
